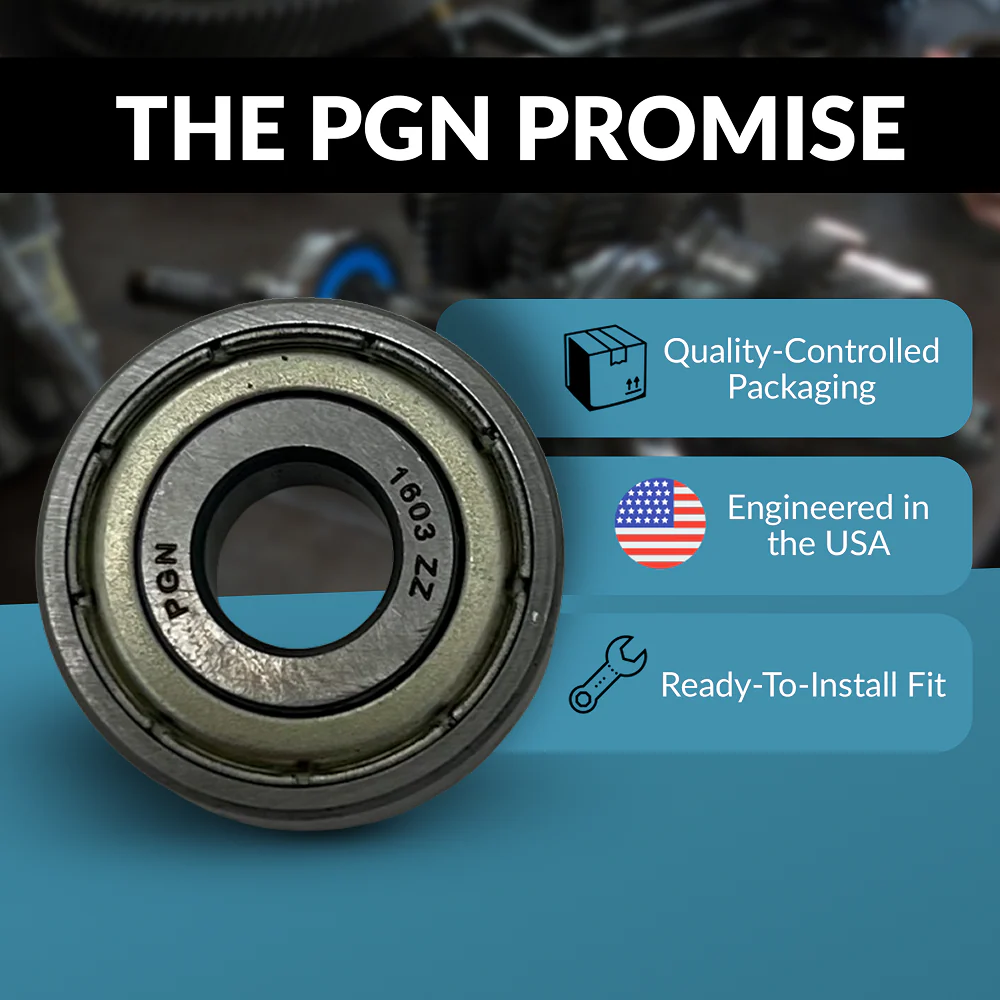

1603-ZZ Ball Bearing

The 1603-ZZ Ball Bearing is an imperial-size deep groove ball bearing engineered for compact applications requiring high rotational speed, low rolling resistance, and stable performance in continuous mechanical systems.

Unlike the 2RS version, the 1603-ZZ uses double metal shields (ZZ), a configuration commonly selected for higher RPM applications and dry operating environments where minimizing rolling resistance is a priority while still maintaining basic lubrication protection.

Part of the inch-series bearing family, the 1603-ZZ is widely used in compact motors, power tools, automated systems, and light industrial machinery built with imperial dimensions. Manufactured from hardened chrome steel and supplied factory pre-lubricated, the bearing delivers excellent rotational efficiency, reduced vibration, and long operational service life.

Common Applications for the 1603-ZZ

The 1603-ZZ is frequently used in applications requiring low rolling resistance and continuous operation, including:

• Compact electric motors
• Power tools
• Automated systems
• Light industrial equipment
• Compact machinery
• Industrial fans
• Precision equipment
• High-speed mechanical systems

The 1600 Series is recognized for combining compact dimensions, dependable operational stability, and strong performance in elevated-speed applications.

Main Features of the 1603-ZZ

Double metal shields

Metal shields help protect internal lubrication while maintaining low rolling resistance for high-RPM applications.

Excellent rotational efficiency

Deep groove geometry delivers smooth rotation, reduced vibration, and dependable operational stability in compact equipment.

Ideal for dry environments

ZZ bearings are widely used in applications with limited exposure to heavy dust or constant moisture.

Smooth and stable operation

The 1603-ZZ provides consistent operation and reduced heat generation in medium and high-speed continuous-duty applications.

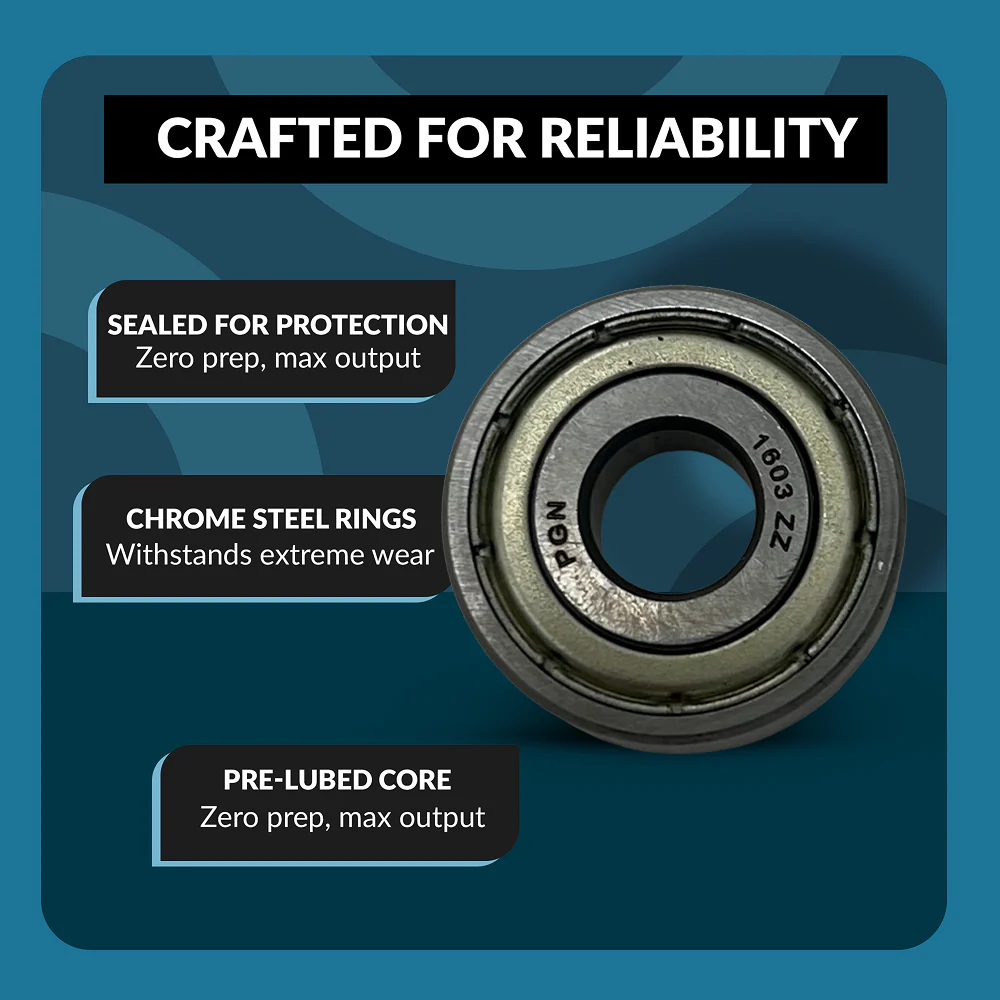

Chrome steel construction

Manufactured from hardened chrome steel to provide dependable mechanical strength, durability, and wear resistance.

When Is the 1603-ZZ Commonly Recommended?

This model is typically selected when applications require:

• high rotational speed
• low rolling resistance
• imperial dimensions
• continuous-duty operation
• compact equipment

Difference Between 1603-ZZ and 1603-2RS

Although both belong to the same series, there are important differences between the configurations.

1603-ZZ

• metal shields
• lower rolling resistance
• improved high-RPM performance
• better suited for dry environments

1603-2RS

• rubber seals
• improved grease retention
• additional protection against light contaminants
• focused on reduced maintenance

Installation Recommendations

To improve bearing service life:

• Use proper installation tools
• Avoid installation impact
• Verify shaft alignment
• Control operating temperature
• Monitor excessive vibration

PGN Bearings Product Line

PGN Bearings supplies components for industrial automation, mechanical power transmission, and rotating systems. The catalog includes deep groove ball bearings, mounted bearings, pillow blocks, roller chains, flanged bearings, and solutions engineered for continuous industrial applications.

FAQ

What does ZZ mean on a bearing?

“ZZ” indicates metal shields on both sides of the bearing.

Does the 1603-ZZ come pre-lubricated?

Yes. The bearing comes factory pre-lubricated.

Is this bearing suitable for high-speed operation?

Yes. The 1603-ZZ is engineered for medium and high-speed applications with reduced rolling resistance.

Can this model be used in electric motors?

Yes. The 1603-ZZ is widely used in compact motors, industrial fans, and automated systems.

What is the advantage of metal shields?

They help protect internal lubrication while maintaining lower rolling resistance compared to rubber-sealed bearings.
