#35 Roller Chain x 50 feet + 5 Free Connecting Links
|
ANSI No |
#35 | LENGTH | 50 ft |
| PITCH | 0.375 inch (9.525 mm) | ROLLER DIAMETER (D1 MAX) |
0.2 inch (5.08 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.188 inch (4.77 mm) | PIN DIAMETER (D2 MAX) |
0.141 inch (3.58 mm) |
| PIN LENGTH (L MAX) |
0.488 inch (12.40 mm) | PIN LENGTH (LC MAX) |
0.518 inch (13.17 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.354 inch (9.0 mm) | PLATE THICKNESS (T MAX) |
0.051 inch (1.30 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
7.90/1795 kN/LB | WEIGHT | 0.221749 lb/ft (0.33 kg/m) |
Read More
#35 Roller Chain 50FT
The #35 Roller Chain 50FT is an industrial chain designed for mechanical transmission applications that require continuous operation, operational strength, and dependable performance in compact industrial and mechanical systems.
With a 50FT length, this model is commonly used in equipment exposed to constant movement, continuous power transmission, and repetitive operation. In addition, the chain includes 5 free connecting links for easier installation and system integration.
Because of this, the #35 Roller Chain is widely used in industrial applications that require stable mechanical transmission, durability, and continuous operation.
What is the #35 Roller Chain 50FT
The #35 Roller Chain 50FT is an industrial roller chain used in continuous mechanical transmission systems.
This type of chain operates together with sprockets to transfer motion in synchronized industrial and mechanical systems. Additionally, the ANSI #35 configuration is widely used in compact mechanical transmission applications.
As a result, the #35 Roller Chain can support multiple industrial and continuous mechanical applications.
Where the #35 Roller Chain 50FT is Used
The #35 Roller Chain 50FT can be used in different industrial and mechanical systems.
Common applications include:
- Light conveyor systems
- Compact machinery
- Industrial equipment
- Mini bikes and go-karts
- Continuous movement applications
- Mechanical transmission systems
Additionally, ANSI #35 roller chains are commonly used in applications requiring stable operation and continuous transmission in compact equipment.
Benefits of the #35 Roller Chain 50FT
Stable mechanical transmission
The chain supports synchronized motion transfer in continuous mechanical systems.
Construction for industrial applications
The #35 Roller Chain is designed for industrial applications that require operational resistance and mechanical reliability.
Practical 50FT length
The 50FT length provides greater flexibility for larger industrial layouts and continuous transmission projects.

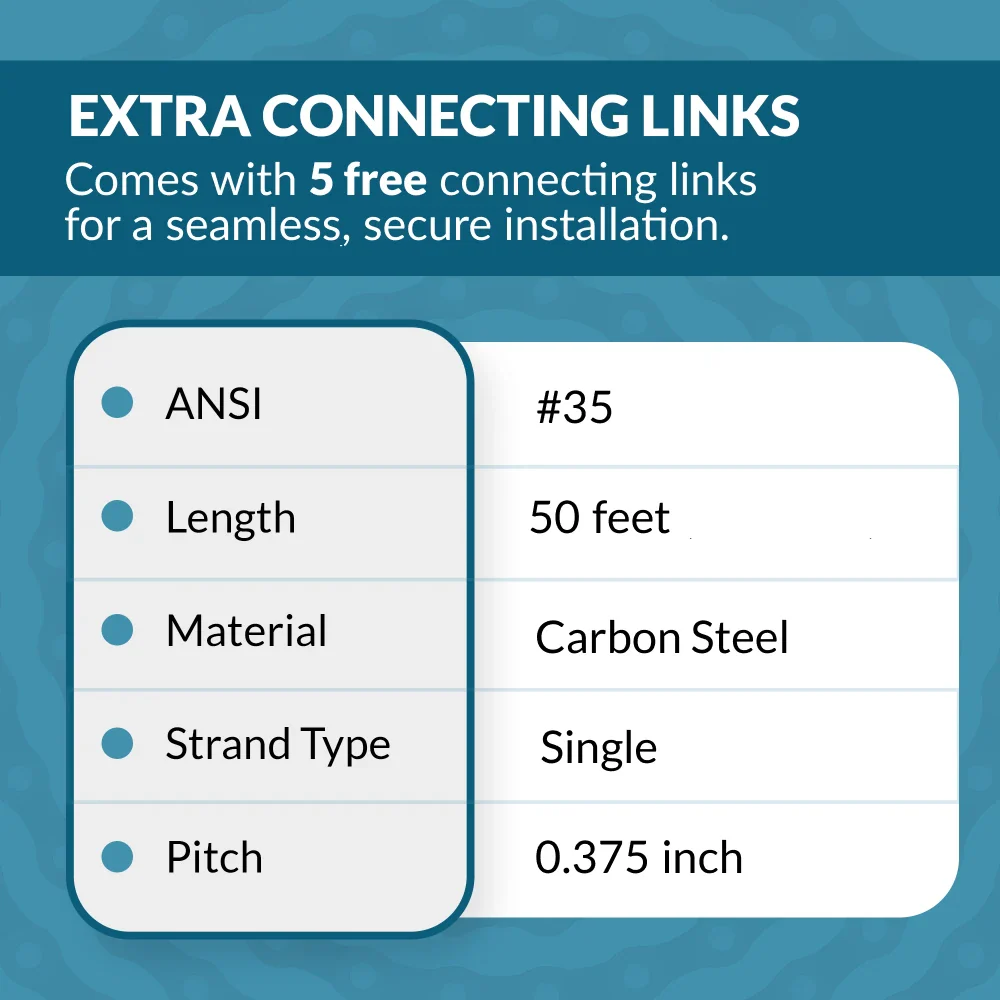

Includes 5 free connecting links
This model includes 5 free connecting links for easier installation, maintenance, and operational adjustments.
Industrial Chains in Continuous Systems
Industrial systems exposed to continuous movement depend on components capable of maintaining dependable performance during extended operating cycles.
Because of this, industrial roller chains are widely used in applications that require continuous power transmission and operational stability.
Additionally, this type of chain helps improve operational reliability in systems exposed to vibration, repetitive loads, and continuous operation.
The #35 Roller Chain 50FT supports these requirements by providing a solution designed for continuous industrial applications and compact mechanical systems.
Technical Specifications
- ANSI No: #35
- Length: 50FT
- Pitch: 0.375 inch (9.525 mm)
- Roller Diameter: 0.2 inch (5.08 mm)
- Width Between Plates: 0.188 inch (4.77 mm)
- Pin Diameter: 0.141 inch (3.58 mm)
- Pin Length: 0.488 inch (12.40 mm)
- Plate Thickness: 0.051 inch (1.30 mm)
- Ultimate Tensile Strength: 7.90/1795 kN/LB
- Weight: 0.221749 lb/ft (0.33 kg/m)
- Material: Carbon Steel
- Includes: 5 free connecting links
How to Choose the Right Chain
When selecting an industrial roller chain, it is important to evaluate the mechanical system, operating environment, and application requirements.
Additionally, checking sprocket compatibility and equipment configuration helps ensure proper system integration.
Therefore, selecting the correct chain contributes to improved operational stability and mechanical performance.
Maintenance Tips
Preventive maintenance helps preserve chain performance over time.
Recommended practices include:
- Periodic alignment checks
- Wear monitoring
- Routine system cleaning
- Preventive inspections
- Lubrication according to application requirements
Additionally, preventive maintenance helps reduce premature wear and improve operational reliability.
PGN Bearings Product Line
PGN Bearings provides industrial solutions for mechanical transmission and continuous movement systems. The product line includes roller chains, heavy duty chains, stainless steel chains, duplex chains, and industrial components.
Additionally, PGN products are developed for industrial applications that require dependable operation and reliable performance.
FAQ
What is a #35 roller chain?
It is an industrial chain used in continuous mechanical transmission applications.
Can the #35 Roller Chain 50FT be used in industrial systems?
Yes. This model is designed for continuous industrial transmission and constant mechanical movement applications.
Does the chain include connecting links?
Yes. This model includes 5 free connecting links for easier installation and system integration.
What is the advantage of the 50FT length?
The 50FT length provides greater flexibility for larger industrial applications and continuous mechanical transmission systems.
How can chain performance be maintained?
Proper lubrication, correct alignment, and periodic inspections help maintain stable and efficient operation.
