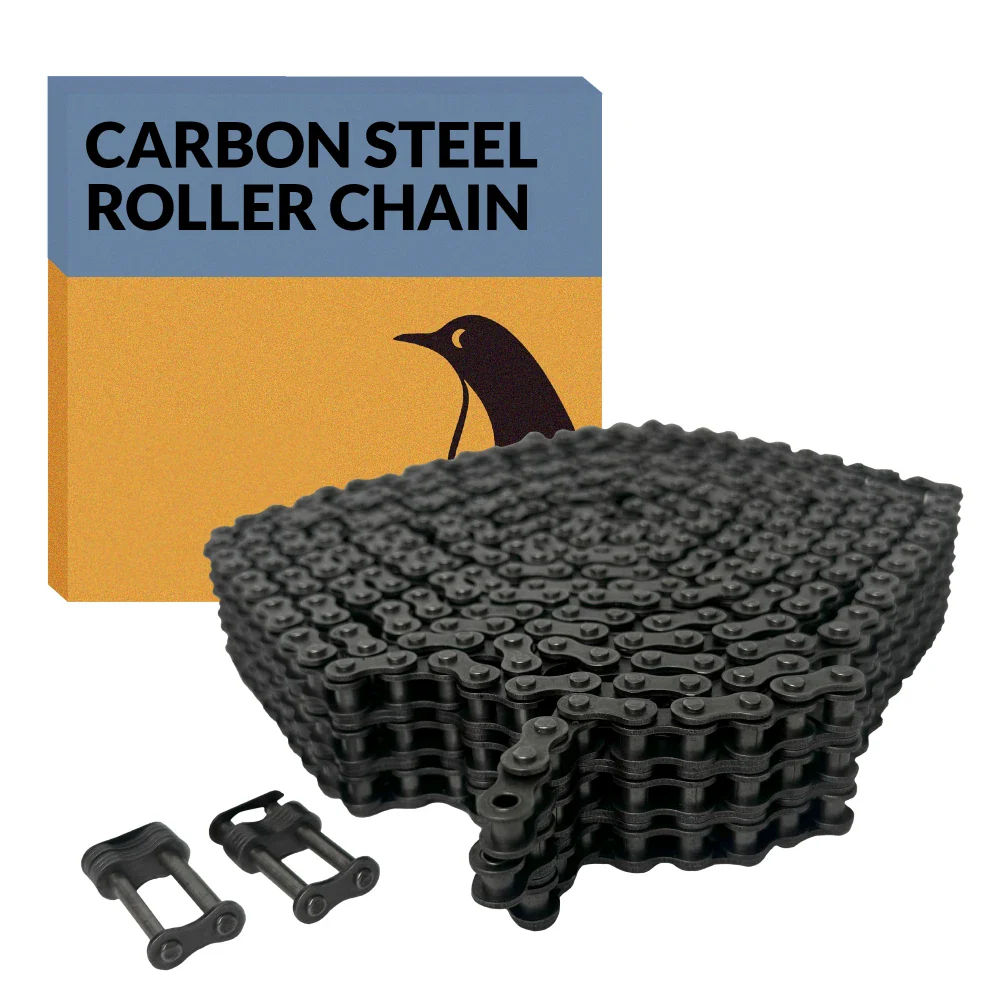

#50-3 Triplex Triple Strand Roller Chain x 10 feet + 2 Connecting Links
|

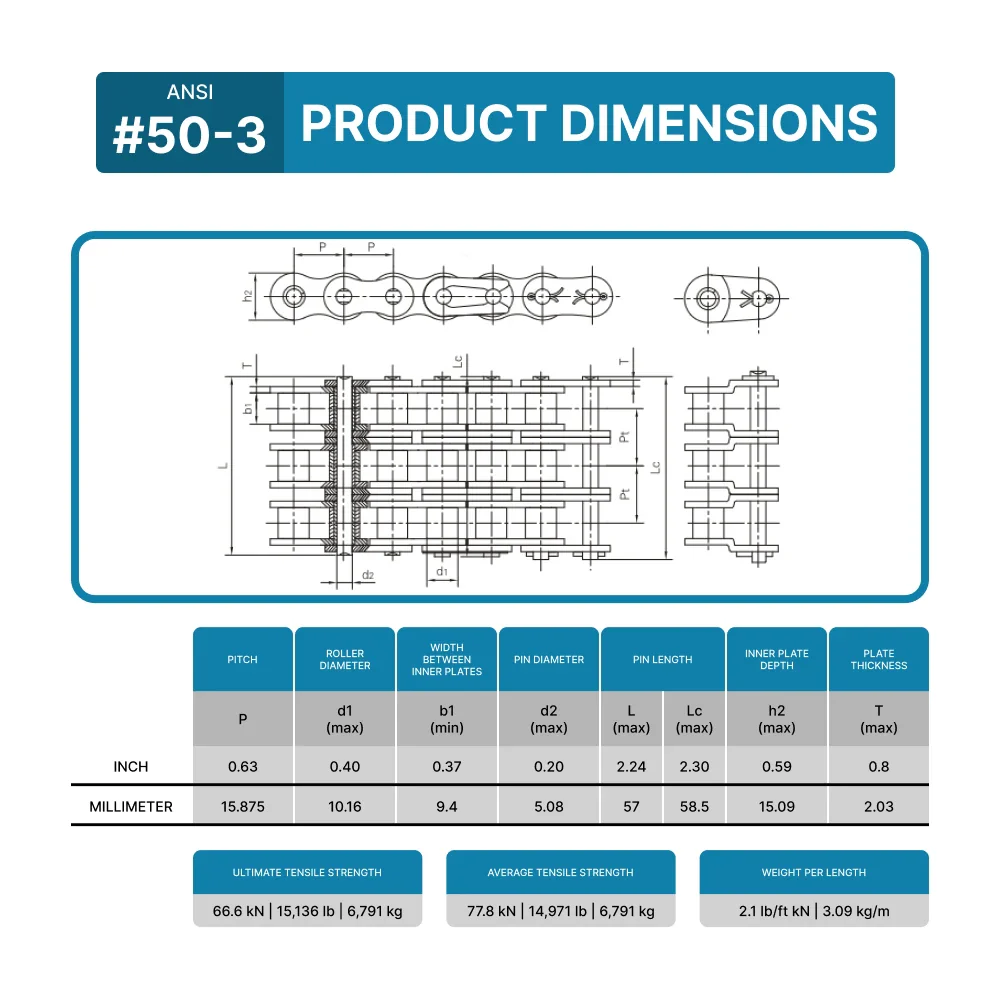

ANSI No |
#50-3 | LENGTH | 10 ft |
| PITCH | 0.63 inch (15.87 mm) | ROLLER DIAMETER (D1 MAX) |
0.40 inch (10.16 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.37 inch (9.4 mm) | PIN DIAMETER (D2 MAX) |
0.20 inch (5.08 mm) |
| PIN LENGTH (L MAX) |
2.24 inch (57 mm) | PIN LENGTH (LC MAX) |
2.30 inch (58.5 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.59 inch (15.09 mm) | PLATE THICKNESS (T MAX) |
0.8 inch (2.03 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
66.6/15,136 kN/LB | WEIGHT | 2.1 lb/ft (3.09 kg/m) |
Read More
50-3 Triplex Roller Chain: Balanced Strength and Stability
The 50-3 triplex roller chain is an efficient solution for systems that require strength and stability. It is designed for continuous industrial use with moderate load demands.
In addition, its triple strand design improves load distribution. As a result, wear is reduced over time.
Another key advantage is consistency. The 50-3 triplex roller chain maintains alignment with sprockets, reducing vibration.
In daily operations, this means less maintenance and better performance.
What is a 50-3 Triplex Roller Chain?
The 50-3 triplex roller chain consists of three parallel strands. This design increases load capacity without increasing system size.
It follows the ANSI #50 standard. Therefore, it ensures compatibility with industrial sprockets.
In practice, it transfers motion between shafts efficiently.
Its rollers reduce friction and improve performance.
Where is the 50-3 Triplex Chain Used?
The 50-3 triplex roller chain is used in systems that require both strength and control.
It is common in conveyors and automated systems.
It is also used in agricultural and industrial equipment.
Its function is to transfer power continuously.
Key Benefits of the 50-3 Triplex Chain
Efficient load distribution
Reduces stress concentration.
Stable operation
Improves alignment and reduces vibration.
Reduced wear
Lower friction extends lifespan.
Improved efficiency
Ensures smooth power transmission.
Technical Specifications
-
Type: Triplex (triple strand)
-
Standard: ANSI #50
-
Length: 10FT
-
Includes: 2 connecting links
-
Application: Medium-duty power transmission
How to Choose the Right Chain
Check sprocket compatibility first.
Then evaluate load requirements.
Also consider the correct length.
These steps improve performance.
Maintenance Tips
Lubricate regularly.
Adjust tension properly.
Inspect frequently.
These practices extend lifespan.
PGN Triplex Chain Line
Explore: https://pgnbearings.com/collections/roller-chains
40-3 Triplex Roller Chain
Light-duty applications
50-3 Triplex Roller Chain
Balanced performance
60-3 Triplex Roller Chain
Higher load capacity
80-3 Triplex Roller Chain
Heavy-duty use
Why Choose PGN Bearings?
ANSI-compliant products.
Wide selection.
Fast shipping.
Technical support.
FAQ
What is a triplex chain?
A three-strand chain for higher strength.
Is it stronger than duplex?
Yes, for higher loads.
How many links in 10FT?
Depends on pitch.
Can I use it anywhere?
Compatibility must be checked.
How to extend lifespan?
Lubrication and inspection.
