6201-2RS Ball Bearing - C3 Clearance - 12x32x10

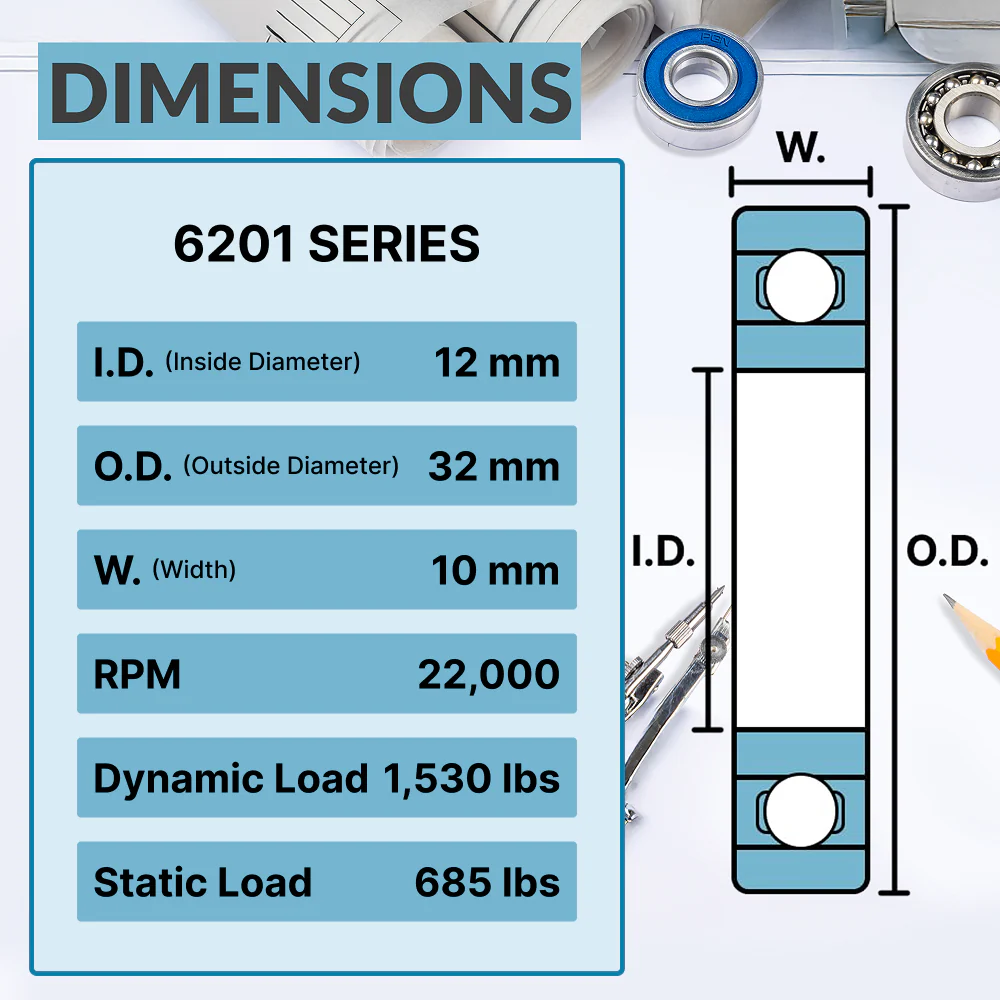

| MODEL | 6201-2RS | IN DIAMETER (BORE) | 12 mm |
| TYPE | Rubber Seal on Both Sides | OUT. DIAMETER | 32 mm |
| MATERIAL | 100% Chrome Steel (AISI 52100) | RPM | 22,000 |
| WIDTH (THICKNESS) | 10 mm | CLEARANCE | C3 (Pre-Lubricated) |
| DYNAMIC LOAD | 1,530 lbs | STATIC LOAD | 685 lbs |
Image for illustration purposes only. Product may also be supplied in black.
Read More
6201-2RS Ball Bearing
The 6201-2RS Ball Bearing is a deep groove ball bearing engineered for compact applications requiring continuous operation, reduced noise levels, and improved lubrication protection in rotating systems.
Its main advantage is the balance between compact dimensions and efficient operation in equipment exposed to repeated operating cycles. Equipped with double rubber seals (2RS), the bearing helps preserve internal grease while supporting dependable stability in light and medium industrial environments.
Manufactured from chrome steel and factory pre-lubricated, the 6201-2RS is widely used in compact motors, automation systems, ventilation equipment, and small mechanical assemblies.
Common Applications for the 6201-2RS
The 6201-2RS is commonly used in equipment operating continuously with reduced maintenance requirements, including:
- Small electric motors
- Automated systems
- HVAC equipment
- Compact fans
- Power tools
- Small pumps
- Light machinery
- Material handling equipment
The 6200 series is widely recognized for versatility in compact industrial systems and medium-speed applications.

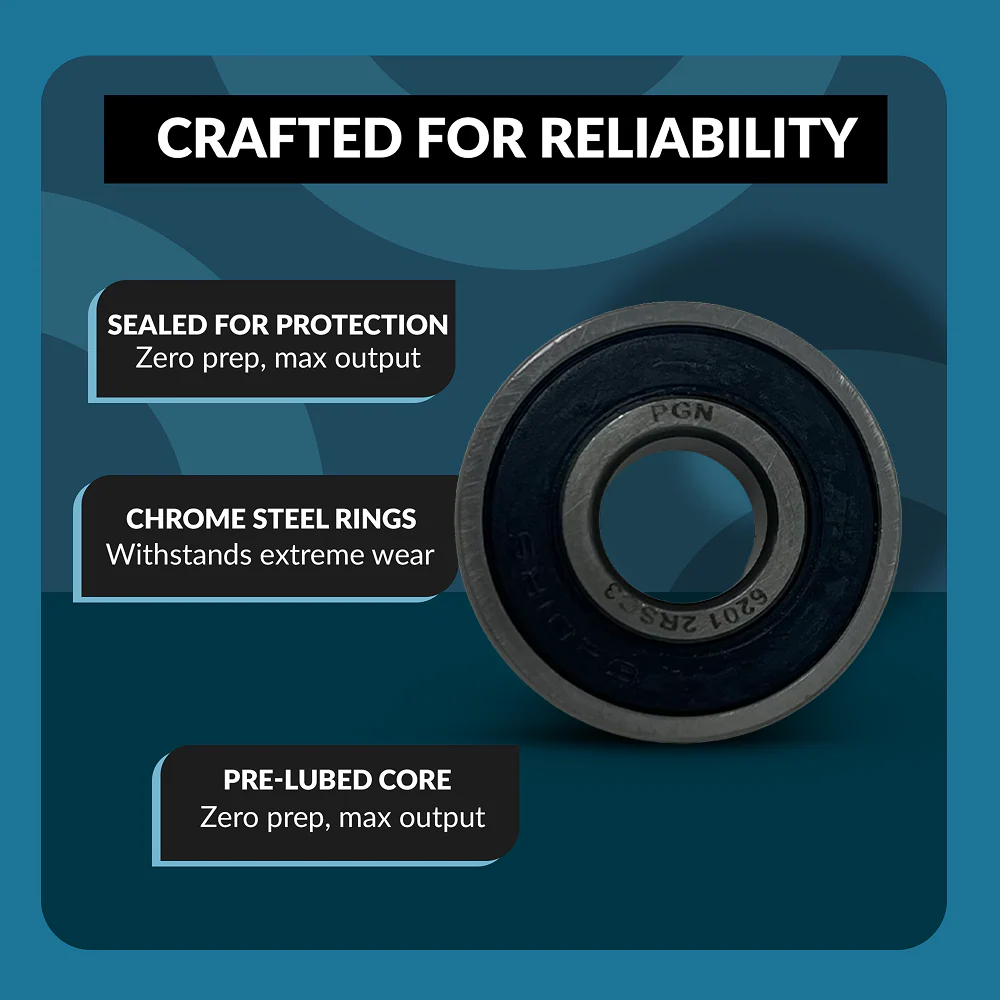

Main Features of the 6201-2RS
Quiet operation
Deep groove geometry supports smooth rotation and reduced vibration, making it suitable for electric motors and automation equipment.
Double rubber seals
Rubber seals help protect internal lubrication while reducing exposure to fine dust and moderate moisture.
Efficient for compact systems
Its reduced size allows installation in equipment with limited internal space while maintaining dependable rotational stability.
Continuous-duty performance with reduced maintenance
The 6201-2RS is commonly selected for applications requiring long operating cycles and lower maintenance intervals.
Chrome steel construction
Manufactured from hardened chrome steel to provide dependable mechanical strength and long operational life in rotating industrial applications.
When to Choose a 2RS Bearing
The 6201-2RS is typically recommended when applications require:
- improved grease retention
- additional protection against fine particles
- reduced maintenance needs
- stable long-term operation
By comparison, ZZ models are generally preferred for lower rolling resistance and extremely high-RPM operation.
Recommendations for Better Performance
To improve bearing durability:
- Avoid shaft misalignment
- Do not apply direct installation impact
- Control operating temperature
- Monitor excessive vibration
- Use proper housing fitment
PGN Bearings Product Line
PGN Bearings supplies components for rotating systems, industrial automation, and mechanical power transmission. The catalog includes deep groove ball bearings, mounted bearings, roller chains, pillow blocks, flanged bearings, and solutions engineered for continuous industrial applications.
FAQ
What does 2RS mean on a bearing?
“2RS” indicates rubber seals on both sides of the bearing.
Does the 6201-2RS come pre-lubricated?
Yes. The bearing comes factory pre-lubricated.
Can this bearing operate continuously?
Yes. The 6201-2RS is designed for continuous-duty compact and light industrial applications.
Can this model be used in industrial automation?
Yes. The bearing is widely used in automated equipment and compact motors.
What is the advantage of rubber seals?
They help preserve internal lubrication and provide additional protection against fine dust and moderate moisture.
