81X Lumber Conveyor Roller Chain x 10 Feet + 2 Connecting Links
|

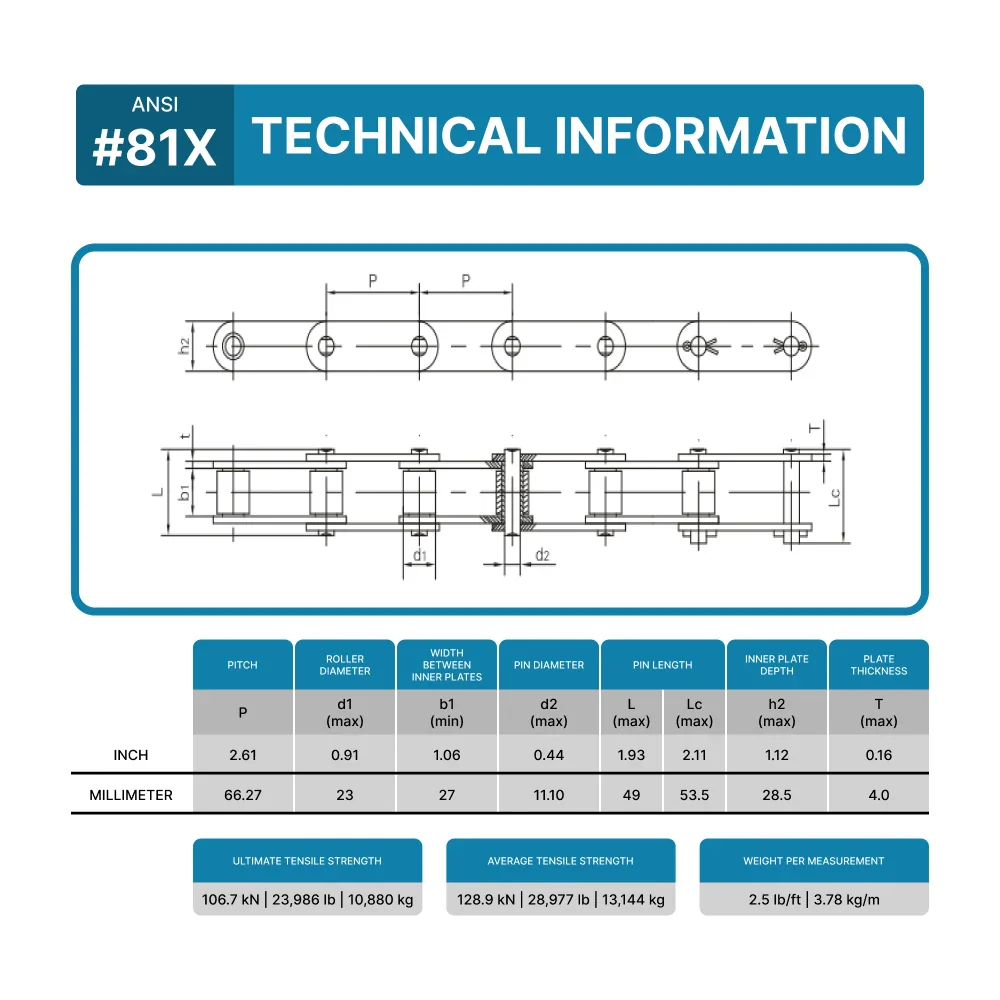

ANSI No |
#81X | LENGTH | 10 ft |
| PITCH | 2.60 inch (66.27 mm) | ROLLER DIAMETER (D1 MAX) |
0.90 inch (23 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
1.06 inch (27 mm) | PIN DIAMETER (D2 MAX) |
0.43 inch (11.10 mm) |
| PIN LENGTH (L MAX) |
1.92 inch (49 mm) | PIN LENGTH (LC MAX) |
2.10 inch (53.5 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.12 inch (28.5 mm) | PLATE THICKNESS (T MAX) |
0.15 inch (4.0 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
106.7/24250 kN/LB | WEIGHT | 3.78 lb/ft (1.71 kg/m) |
Read More
81X Lumber Conveyor Roller Chain 10FT
The 81X Lumber Conveyor Roller Chain 10FT is designed for industrial conveying applications and continuous material movement systems.
With a 10FT length, this model is commonly used in industrial equipment that requires continuous operational flow and synchronized mechanical movement. In addition, chains within the 81X category are frequently used in conveyor applications exposed to repetitive operation and continuous workflow.
Because of this, the 81X Lumber Conveyor Roller Chain is widely used in industrial systems that depend on operational stability and efficient material movement.
What is the 81X Lumber Conveyor Roller Chain 10FT
The 81X Lumber Conveyor Roller Chain 10FT is a conveyor roller chain designed for industrial transport and continuous mechanical movement systems.
This type of chain operates through synchronized interaction between the chain and sprockets, allowing continuous motion transmission in industrial equipment and conveyor systems.
Additionally, lumber conveyor chains are commonly used in industrial applications that require constant movement flow and repetitive operation throughout production cycles.
As a result, the 81X Lumber Conveyor Roller Chain can support different industrial transport and continuous movement systems.
Where the 81X Lumber Conveyor Roller Chain 10FT is Used
The 81X Lumber Conveyor Roller Chain 10FT can be used in multiple industrial transport and movement systems.
Common applications include:
- Industrial conveyor systems
- Continuous movement equipment
- Material handling applications
- Processing machinery
- Mechanical transport systems
- Continuous flow industrial equipment
Additionally, conveyor chains are commonly used in industrial operations that require continuous transmission and synchronized material movement.
Benefits of the 81X Lumber Conveyor Roller Chain 10FT
Designed for continuous movement
The chain is designed for industrial applications that require constant operational flow and continuous motion transmission.
Stable conveyor system operation
The 81X helps maintain smooth movement in industrial equipment and mechanical transport systems.
Efficient industrial integration
This model can be used in different conveyor system configurations and continuous movement applications.
Practical 10FT length
The 10FT length provides flexibility for integration into industrial systems and conveyor equipment layouts.
Lumber Conveyor Chains for Industrial Transport Systems
Continuous industrial transport systems depend on components capable of maintaining stable movement and consistent operational flow during repetitive working cycles.
Because of this, lumber conveyor chains are widely used in industrial equipment that requires continuous transmission and synchronized material movement.
Additionally, this type of chain helps maintain operational stability in material handling and continuous mechanical transport applications.
The 81X Lumber Conveyor Roller Chain 10FT supports these requirements by providing a solution designed for industrial conveyor systems and continuous movement applications.
How to Choose the Right Conveyor Chain
When selecting a conveyor roller chain, it is important to evaluate the mechanical system, operating environment, and application requirements.
Additionally, checking sprocket compatibility and equipment configuration helps ensure proper system integration.
Therefore, selecting the correct chain contributes to improved operational stability and equipment performance.
Maintenance Tips
Preventive maintenance helps preserve chain performance over time.
Recommended practices include:
- Periodic alignment checks
- Operational inspections
- Wear monitoring
- Routine system cleaning
- Lubrication according to application requirements
In addition, preventive maintenance helps reduce unexpected downtime and improve operational reliability.
PGN Bearings Product Line
PGN Bearings provides industrial solutions for mechanical transmission and continuous movement systems. The product line includes roller chains, conveyor chains, heavy duty chains, and industrial components.
Additionally, PGN products are developed for industrial applications that require dependable operation and reliable performance.
Why Choose PGN Bearings
PGN Bearings supplies industrial components for multiple industries and mechanical systems.
Key advantages include:
- Complete industrial chain product line
- Solutions for conveyor systems
- Products for continuous movement applications
- Components for mechanical transmission
- Focus on industrial quality
Because of this, companies use PGN products across multiple industrial transport and movement systems.
FAQ
What is a lumber conveyor roller chain?
It is an industrial chain used in conveyor systems and continuous material movement applications.
Can the 81X Lumber Conveyor Roller Chain 10FT be used in conveyor systems?
Yes. This model is designed for conveyor applications and continuous industrial transport systems.
Is the 10FT length suitable for industrial applications?
Yes. The 10FT length provides flexibility for different industrial layouts and mechanical systems.

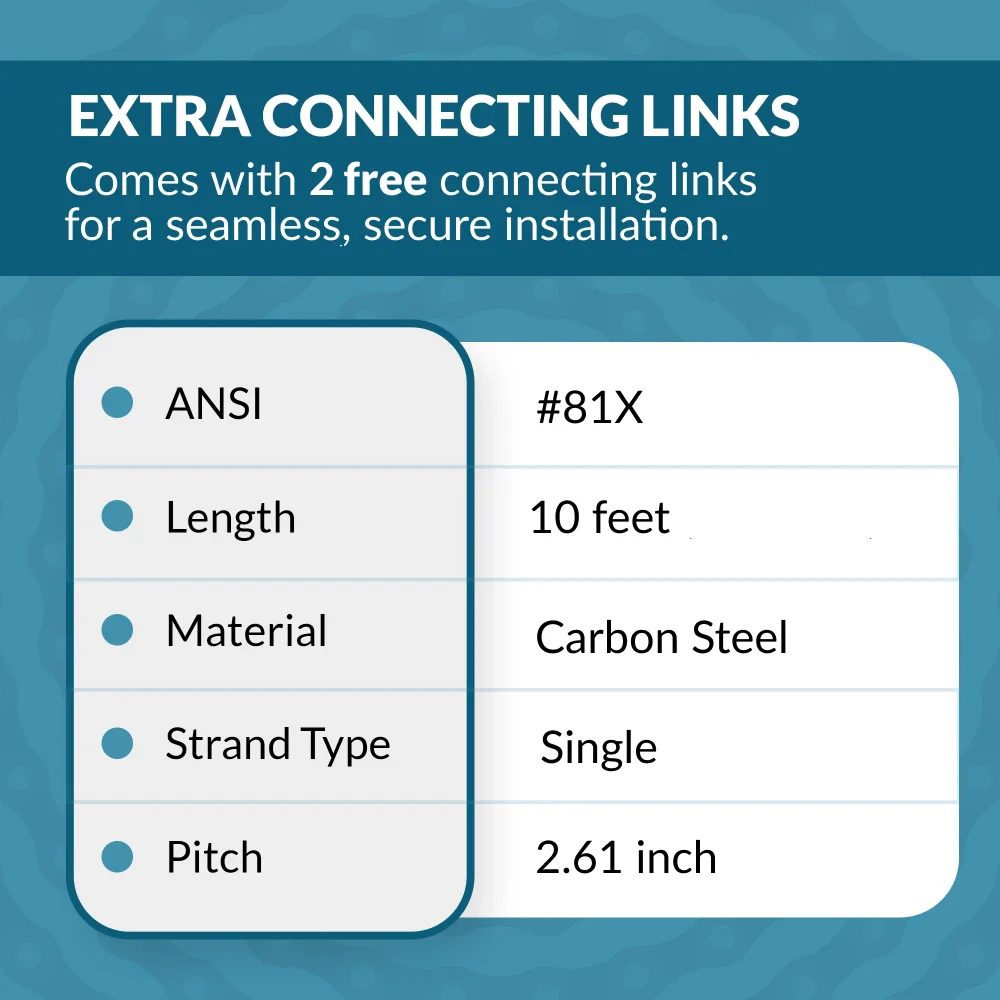

Does the chain include connecting links?
Yes. This model includes connecting links for easier installation and system integration.
How can chain performance be maintained?
Regular inspections, proper alignment, and preventive maintenance help support stable and efficient operation.
