#100-2 Duplex Double Strand Roller Chain x 10 feet + 2 Connecting Links
|

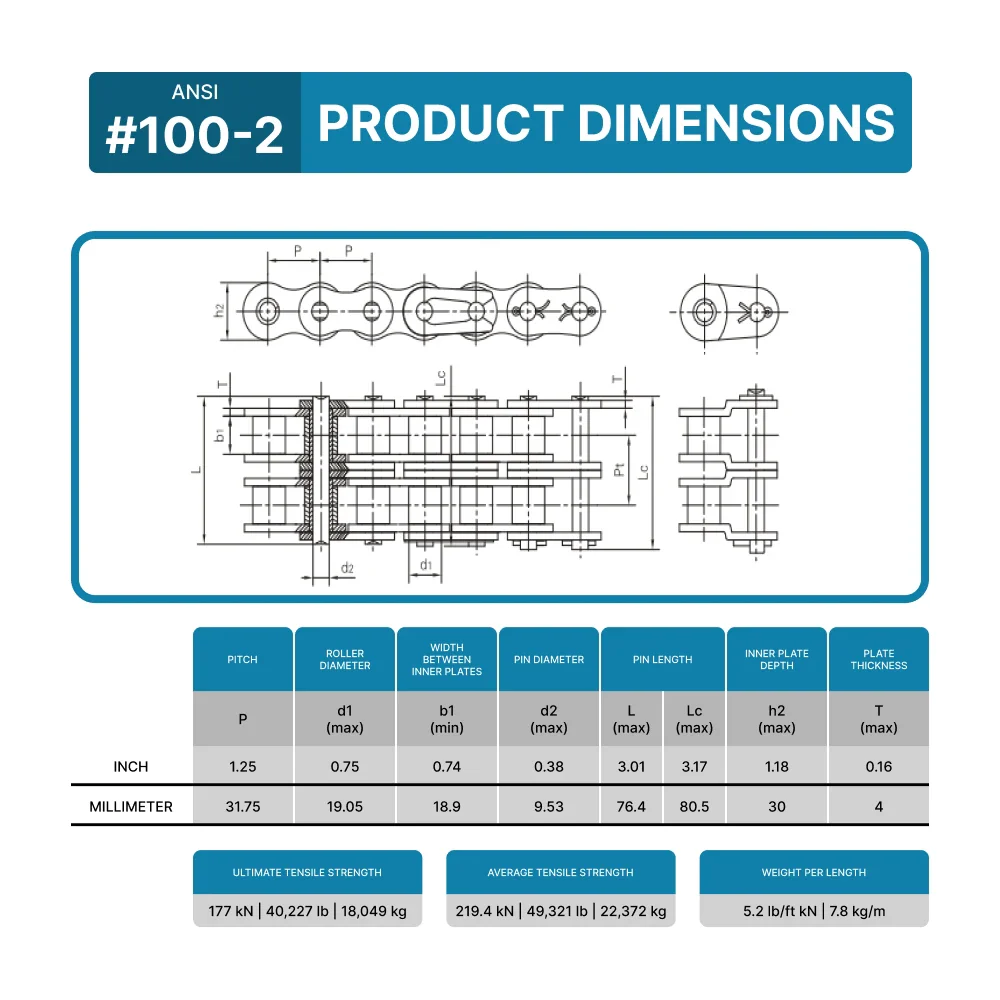

ANSI No |
#100-2 | LENGTH | 10 ft |
| PITCH | 1.25 inch (31.75 mm) | ROLLER DIAMETER (D1 MAX) |
0.75 inch (19.05 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.74 inch (18.9 mm) | PIN DIAMETER (D2 MAX) |
0.38 inch (9.53 mm) |
| PIN LENGTH (L MAX) |
3.01 inch (76.4 mm) | PIN LENGTH (LC MAX) |
3.17 inch (80.5 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.18 inch (30 mm) | PLATE THICKNESS (T MAX) |
0.16 inch (4 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
177/40,227 kN/LB | WEIGHT | 5.2 lb/ft (7.8 kg/m) |
Read More
100-2 Duplex Roller Chain: Strength and Precision for Power Transmission
The 100-2 duplex roller chain is a robust solution for industrial power transmission. It combines strength, stability, and consistent performance in demanding environments.
In addition, its double strand design increases load capacity. As a result, it is ideal for machines operating under continuous stress.
Another important advantage is efficiency. The 100-2 duplex roller chain reduces friction and improves motion transfer. Therefore, systems run more precisely with less wear.
In daily operations, this means higher productivity and fewer interruptions. This makes it a reliable choice.
What is a 100-2 Duplex Roller Chain?
The 100-2 duplex roller chain is a transmission chain built with two parallel strands of links. This design increases strength and load capacity.
In addition, it follows the ANSI #100 standard. This ensures compatibility with industrial sprockets.
In practice, it connects mechanical components and transfers motion between shafts. Because of this, it is essential in industrial systems.
Another key feature is its rollers. They reduce friction and improve overall efficiency.
What is the 100-2 Duplex Chain Used For?
The 100-2 duplex roller chain is used in systems that require high load capacity. It is common in industrial environments.
It is also widely used in conveyors and production lines. This is because it supports continuous operation.
In addition, it is found in agricultural equipment. It performs well even under harsh conditions.
Its main function is to transfer motion with precision. This keeps systems running efficiently.
Key Benefits of the 100-2 Duplex Roller Chain
High load capacity
The double strand design distributes stress efficiently.
Increased durability
Materials resist wear and extend service life.
Efficient power transmission
Rollers reduce friction and improve performance.
Versatile applications
Suitable for multiple industries.

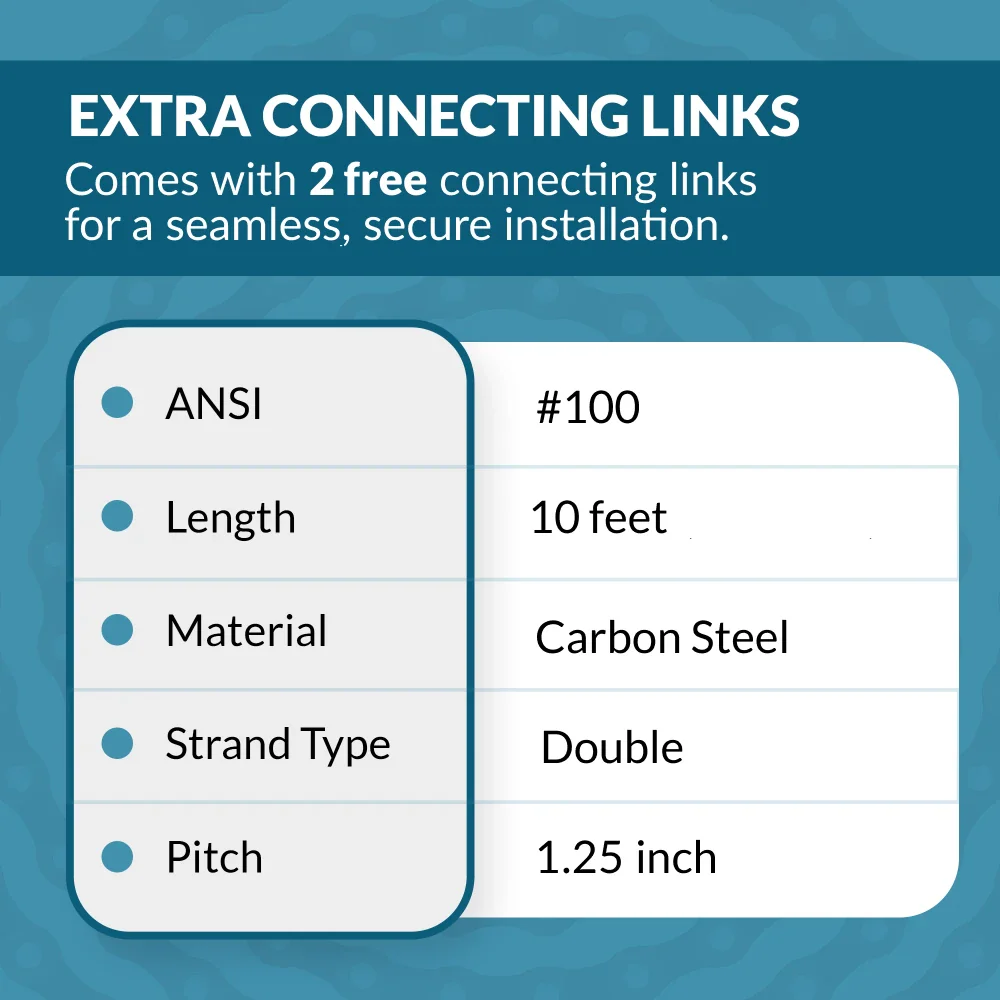

Technical Specifications of the 100-2 Chain
The 100-2 duplex roller chain follows ANSI standards.
-
Pitch: 1.25” (31.75 mm)
-
Type: Duplex (double strand)
-
Compatibility: ANSI #100 sprockets
-
Length: 10FT
-
Includes: 2 connecting links
These features ensure reliability in demanding applications.
How to Choose the Right 100-2 Chain
Choosing the correct 100-2 duplex roller chain is essential.
First, check sprocket compatibility.
Then, evaluate load requirements.
Also, choose the correct length.
With these steps, selection becomes more accurate.
Maintenance and Usage Tips
Proper maintenance extends the life of the 100-2 duplex roller chain.
First, apply lubrication regularly.
Then, adjust chain tension correctly.
Also, perform routine inspections.
With these practices, systems remain reliable.
PGN Duplex Chain Product Line
Explore options at https://pgnbearings.com/collections/duplex-roller-chains
#40-2 Duplex Roller Chain x 10FT
Light-duty applications.
#50-2 Duplex Roller Chain x 10FT
General industrial use.
#60-2 Duplex Roller Chain x 10FT
Medium load capacity.
#80-2 Duplex Roller Chain x 10FT
More demanding systems.
#100-2 Duplex Roller Chain x 10FT
Heavy-duty applications.
Why Choose PGN Bearings?
PGN delivers reliable industrial solutions.
Certified quality
ANSI-compliant products.
Wide selection
Multiple sizes available.
Fast shipping
Minimizes downtime.
Technical support
Expert assistance.
FAQ – Frequently Asked Questions
What is a 60-2 chain?
A smaller duplex chain for lighter applications.
What size is a 10B chain?
It follows a European standard.
Is 10B the same as #50?
No, they follow different standards.
How many links are in a 10ft chain?
Depends on pitch, typically around 96 links.
Can you replace a 60 chain with 60H?
Yes, but 60H is stronger.
