UCFL204-12 Pillow Block Flange Mounted Bearing 3/4" Inch Bore

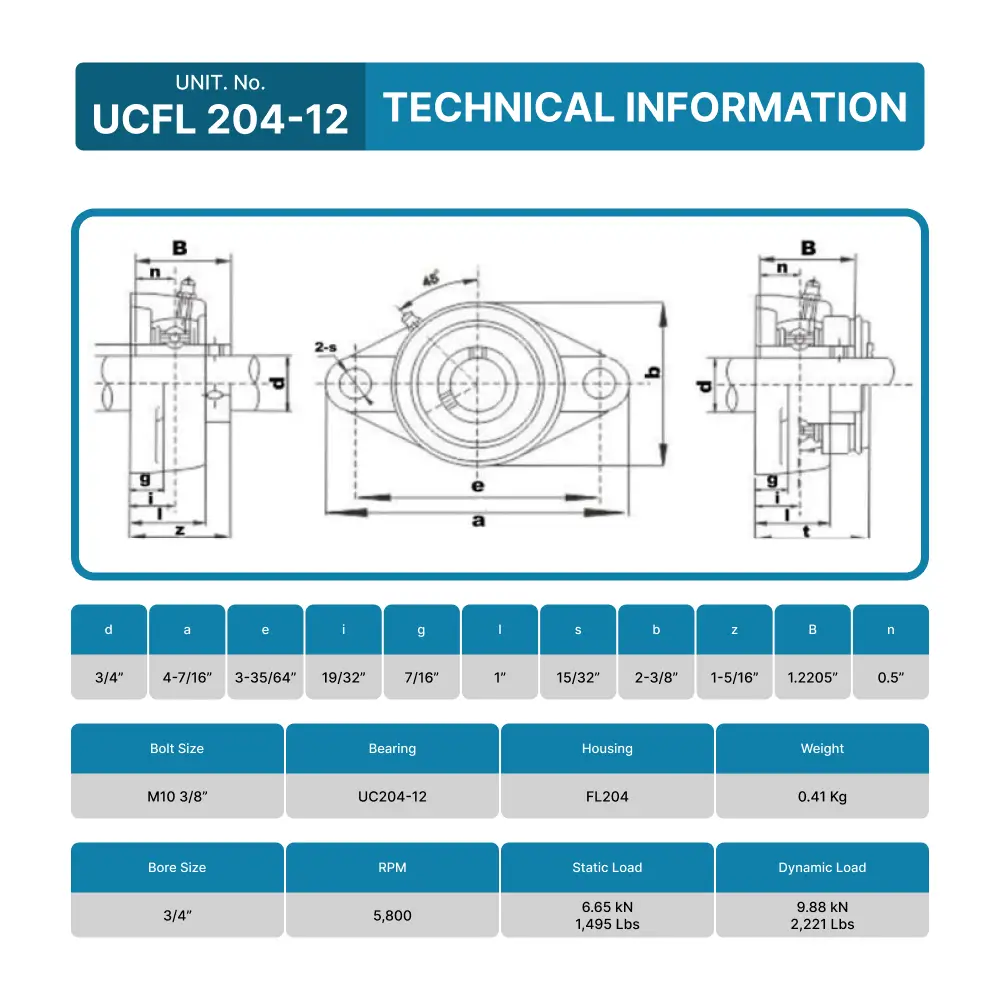

| MODEL | UCFL204-12 | DYNAMIC LOAD | 2,221 lbs |
| HOUSING MATERIAL | Cast Iron | STATIC LOAD | 1,495 lbs |
| BORE SIZE | 3/4" | RPM | 5,800 |
Ā
Read More
UCFL204-12 Pillow Block Flange Mounted Bearing ā 3/4" Bore
Introduction
The UCFL204-12 Pillow Block Flange Mounted Bearing is designed for industrial applications requiring a compact, durable, and easy-to-install mounted bearing unit. Featuring a 3/4-inch bore and a two-bolt oval flange housing, it is an excellent solution for machinery with limited mounting space while providing dependable shaft support.
Its rugged cast iron housing delivers excellent structural strength, while the self-aligning insert bearing helps compensate for minor shaft misalignment. This combination reduces vibration, promotes smooth operation, and extends bearing service life in demanding industrial environments.
With a 2,221 lb dynamic load rating, 1,495 lb static load rating, and a maximum operating speed of 5,800 RPM, the UCFL204-12 is ideal for packaging equipment, compact conveyors, agricultural machinery, automated systems, and light industrial applications.
Hero Product Snippet
Built for compact industrial equipment, the UCFL204-12 combines a space-saving two-bolt oval flange with reliable shaft support for 3/4-inch shafts.
Recommended Applications
- Packaging machinery
- Compact conveyor systems
- Agricultural equipment
- Textile machinery
- Automated equipment
- Power transmission systems
- Food processing equipment
- Light industrial machinery
Compact Two-Bolt Oval Flange Design
The UCFL Series features a two-bolt oval housing that simplifies installation in narrow spaces while maintaining excellent shaft support and mounting stability.
Durable Cast Iron Housing
Its cast iron housing provides excellent rigidity and vibration resistance for dependable performance in industrial and commercial applications.
Self-Aligning Bearing Insert
The self-aligning insert bearing accommodates minor shaft misalignment, helping reduce wear while maintaining smooth operation.
Reliable Performance at Moderate Speeds
Rated for speeds up to 5,800 RPM, the UCFL204-12 supports a wide range of industrial machinery requiring dependable long-term operation.
Easy Relubrication and Maintenance
A built-in grease fitting allows routine lubrication, helping maximize bearing life while minimizing maintenance downtime.
Key Features
- UCFL204-12 model
- Two-bolt oval flange housing
- 3/4" bore
- Cast iron housing
- Self-aligning insert bearing
- 2,221 lb dynamic load rating
- 1,495 lb static load rating
- Maximum speed: 5,800 RPM
- Relubricatable design
- Ideal for compact industrial equipment
FAQ
What is the difference between the UCFL204-12 and the UCF204-12?
The UCFL204-12 features a two-bolt oval flange, while the UCF204-12 uses a four-bolt square flange. The UCFL design is ideal for installations with limited mounting space.
Where is this bearing commonly used?
It is commonly installed in packaging equipment, compact conveyors, agricultural machinery, automated systems, and light industrial equipment.
What material is the housing made from?
The housing is manufactured from durable cast iron.
What is its load capacity?
The unit features a 2,221 lb dynamic load rating and a 1,495 lb static load rating.
Can it compensate for shaft misalignment?
Yes. The self-aligning insert bearing accommodates minor shaft misalignment.
Is the UCFL204-12 relubricatable?
Yes. The housing includes a grease fitting for routine lubrication and easier maintenance.
