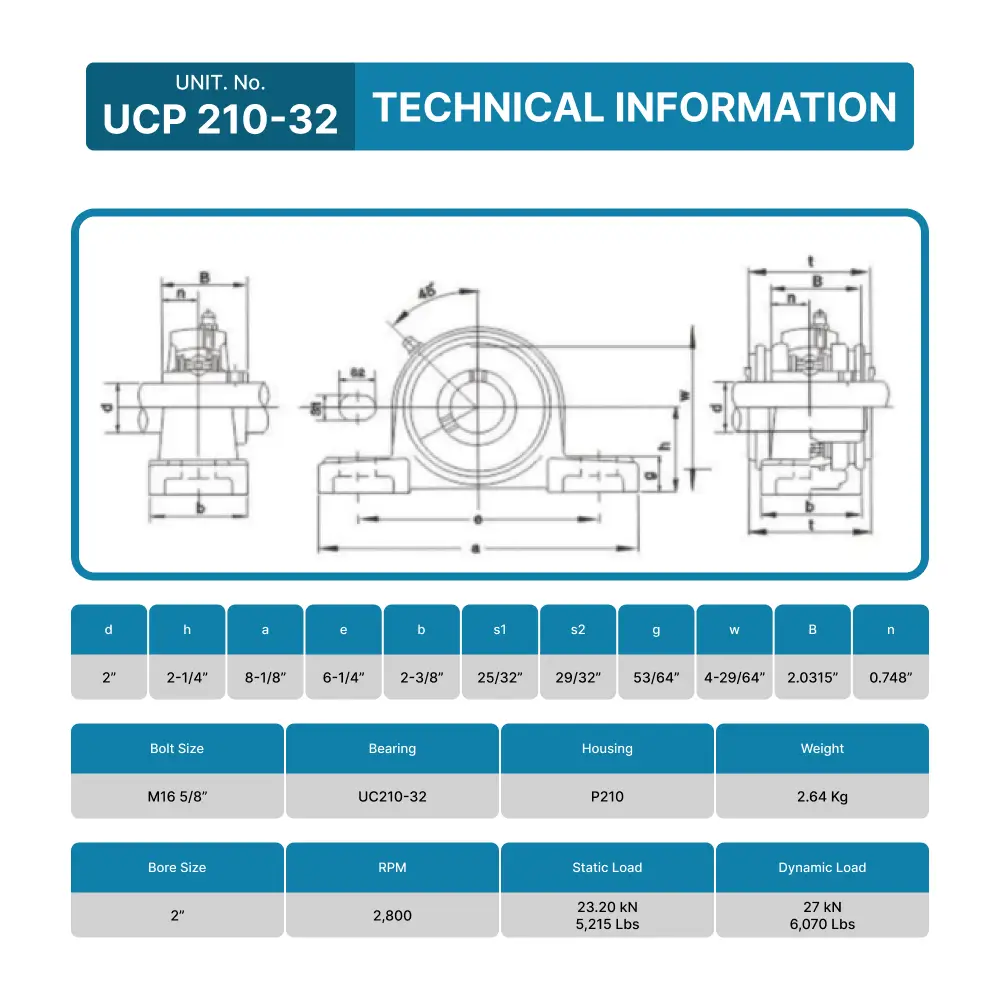

UCP210-32 Pillow Block Mounted Ball Bearing 2" Bore
| MODEL | UCP210-32 | DYNAMIC LOAD | 6,070 lbs |
| HOUSING MATERIAL | Cast Iron | STATIC LOAD | 5,215 lbs |
| BORE SIZE | 2" | RPM | 2,800 |
Ā
Read More
UCP210-32 Pillow Block Ball Bearing ā 2" Bore
Introduction
The UCP210-32 Pillow Block Ball Bearing is engineered for industrial applications requiring high load capacity, outstanding structural stability, and dependable shaft support for 2-inch shafts. Featuring a rugged cast iron housing with a self-aligning insert bearing, this mounted unit is designed for continuous-duty equipment operating in demanding industrial environments.
Its reinforced two-bolt base provides secure mounting on flat surfaces, while the self-aligning insert bearing accommodates minor shaft misalignment during operation. This design improves load distribution, minimizes vibration, and helps maximize bearing service life while reducing maintenance requirements.
With a 7,891 lb dynamic load rating, 5,216 lb static load rating, and a maximum operating speed of 3,300 RPM, the UCP210-32 is an excellent solution for conveyor systems, agricultural machinery, material handling equipment, processing machinery, and industrial power transmission applications.
Hero Product Snippet
Designed for demanding industrial applications, the UCP210-32 delivers exceptional load capacity, rugged construction, and dependable shaft support for 2-inch shafts.
Recommended Applications
- Conveyor systems
- Agricultural machinery
- Material handling equipment
- Processing machinery
- Mining equipment
- Woodworking machinery
- Production lines
- Power transmission systems
Reinforced Two-Bolt Base
The UCP Series features a heavy-duty two-bolt pillow block housing that provides secure mounting, excellent structural stability, and simplified installation on industrial equipment.
Heavy-Duty Cast Iron Housing
Its cast iron housing delivers outstanding rigidity and vibration resistance, making it well suited for continuous-duty industrial applications.
Self-Aligning Bearing Insert
The self-aligning insert bearing accommodates minor shaft misalignment, helping reduce wear while maintaining smooth and reliable operation.
High Load Capacity
With a 7,891 lb dynamic load rating and 5,216 lb static load rating, the UCP210-32 provides dependable support for heavy-duty industrial equipment operating under continuous loads.
Easy Relubrication
A built-in grease fitting allows routine lubrication, helping maximize bearing life while reducing maintenance downtime.
Key Features
- UCP210-32 model
- Two-bolt pillow block housing
- 2" bore
- Cast iron housing
- Self-aligning insert bearing
- 7,891 lb dynamic load rating
- 5,216 lb static load rating
- Maximum speed: 3,300 RPM
- Relubricatable design
- Ideal for heavy-duty industrial applications
FAQ
What is the UCP210-32?
The UCP210-32 is a mounted pillow block bearing designed for 2-inch shafts, featuring a cast iron housing and a self-aligning insert bearing.
Where is this bearing commonly used?
It is commonly installed in conveyor systems, agricultural machinery, material handling equipment, processing machinery, and industrial power transmission applications.
What material is the housing made from?
The housing is manufactured from durable cast iron.
What is its load capacity?
The unit features a 7,891 lb dynamic load rating and a 5,216 lb static load rating.
Can it compensate for shaft misalignment?
Yes. The self-aligning insert bearing accommodates minor shaft misalignment during operation, helping improve reliability and extend bearing life.
Is the UCP210-32 relubricatable?
Yes. The housing includes a grease fitting for routine lubrication and easier maintenance.
Original: $19.90
-65%$19.90
$6.96
Description
| MODEL | UCP210-32 | DYNAMIC LOAD | 6,070 lbs |
| HOUSING MATERIAL | Cast Iron | STATIC LOAD | 5,215 lbs |
| BORE SIZE | 2" | RPM | 2,800 |
Ā
Read More
UCP210-32 Pillow Block Ball Bearing ā 2" Bore
Introduction
The UCP210-32 Pillow Block Ball Bearing is engineered for industrial applications requiring high load capacity, outstanding structural stability, and dependable shaft support for 2-inch shafts. Featuring a rugged cast iron housing with a self-aligning insert bearing, this mounted unit is designed for continuous-duty equipment operating in demanding industrial environments.
Its reinforced two-bolt base provides secure mounting on flat surfaces, while the self-aligning insert bearing accommodates minor shaft misalignment during operation. This design improves load distribution, minimizes vibration, and helps maximize bearing service life while reducing maintenance requirements.
With a 7,891 lb dynamic load rating, 5,216 lb static load rating, and a maximum operating speed of 3,300 RPM, the UCP210-32 is an excellent solution for conveyor systems, agricultural machinery, material handling equipment, processing machinery, and industrial power transmission applications.
Hero Product Snippet
Designed for demanding industrial applications, the UCP210-32 delivers exceptional load capacity, rugged construction, and dependable shaft support for 2-inch shafts.
Recommended Applications
- Conveyor systems
- Agricultural machinery
- Material handling equipment
- Processing machinery
- Mining equipment
- Woodworking machinery
- Production lines
- Power transmission systems
Reinforced Two-Bolt Base
The UCP Series features a heavy-duty two-bolt pillow block housing that provides secure mounting, excellent structural stability, and simplified installation on industrial equipment.
Heavy-Duty Cast Iron Housing
Its cast iron housing delivers outstanding rigidity and vibration resistance, making it well suited for continuous-duty industrial applications.
Self-Aligning Bearing Insert
The self-aligning insert bearing accommodates minor shaft misalignment, helping reduce wear while maintaining smooth and reliable operation.
High Load Capacity
With a 7,891 lb dynamic load rating and 5,216 lb static load rating, the UCP210-32 provides dependable support for heavy-duty industrial equipment operating under continuous loads.
Easy Relubrication
A built-in grease fitting allows routine lubrication, helping maximize bearing life while reducing maintenance downtime.
Key Features
- UCP210-32 model
- Two-bolt pillow block housing
- 2" bore
- Cast iron housing
- Self-aligning insert bearing
- 7,891 lb dynamic load rating
- 5,216 lb static load rating
- Maximum speed: 3,300 RPM
- Relubricatable design
- Ideal for heavy-duty industrial applications
FAQ
What is the UCP210-32?
The UCP210-32 is a mounted pillow block bearing designed for 2-inch shafts, featuring a cast iron housing and a self-aligning insert bearing.
Where is this bearing commonly used?
It is commonly installed in conveyor systems, agricultural machinery, material handling equipment, processing machinery, and industrial power transmission applications.
What material is the housing made from?
The housing is manufactured from durable cast iron.
What is its load capacity?
The unit features a 7,891 lb dynamic load rating and a 5,216 lb static load rating.
Can it compensate for shaft misalignment?
Yes. The self-aligning insert bearing accommodates minor shaft misalignment during operation, helping improve reliability and extend bearing life.
Is the UCP210-32 relubricatable?
Yes. The housing includes a grease fitting for routine lubrication and easier maintenance.
