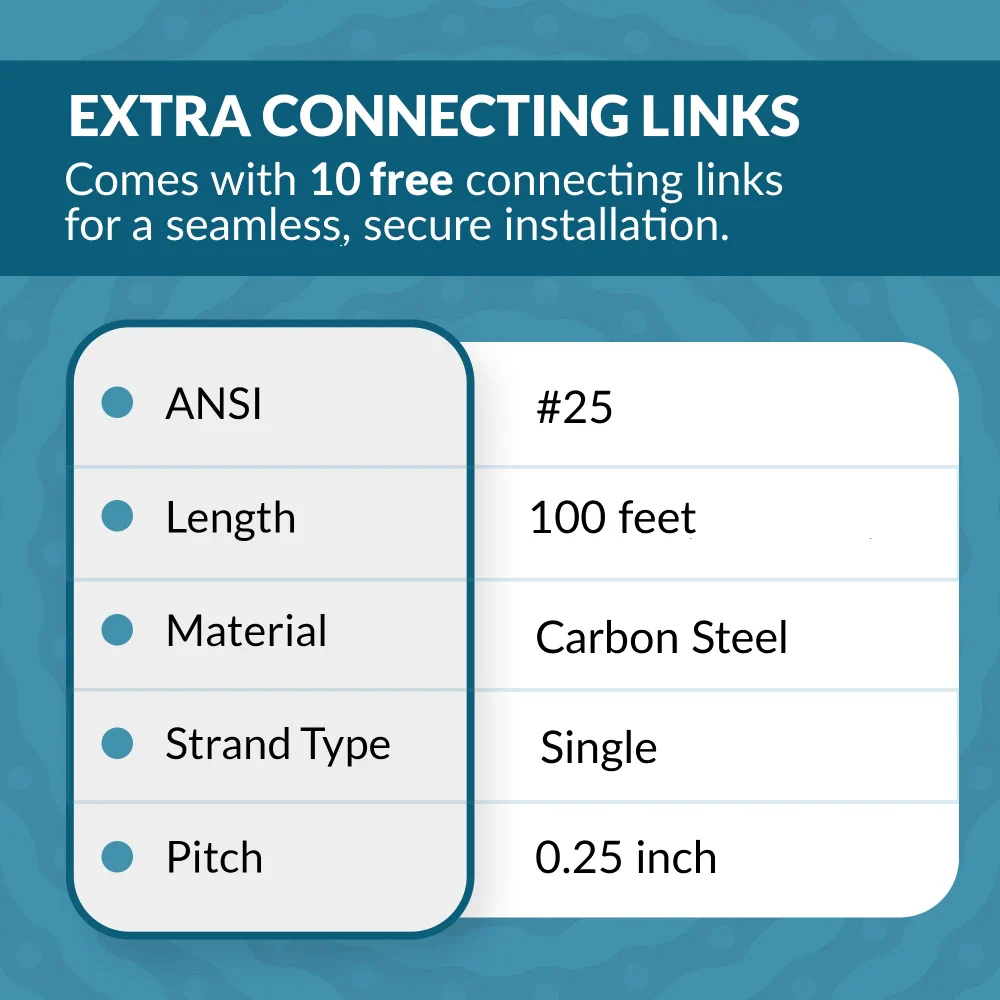

#25 Roller Chain x 100 feet + 10 Free Connecting Links
|

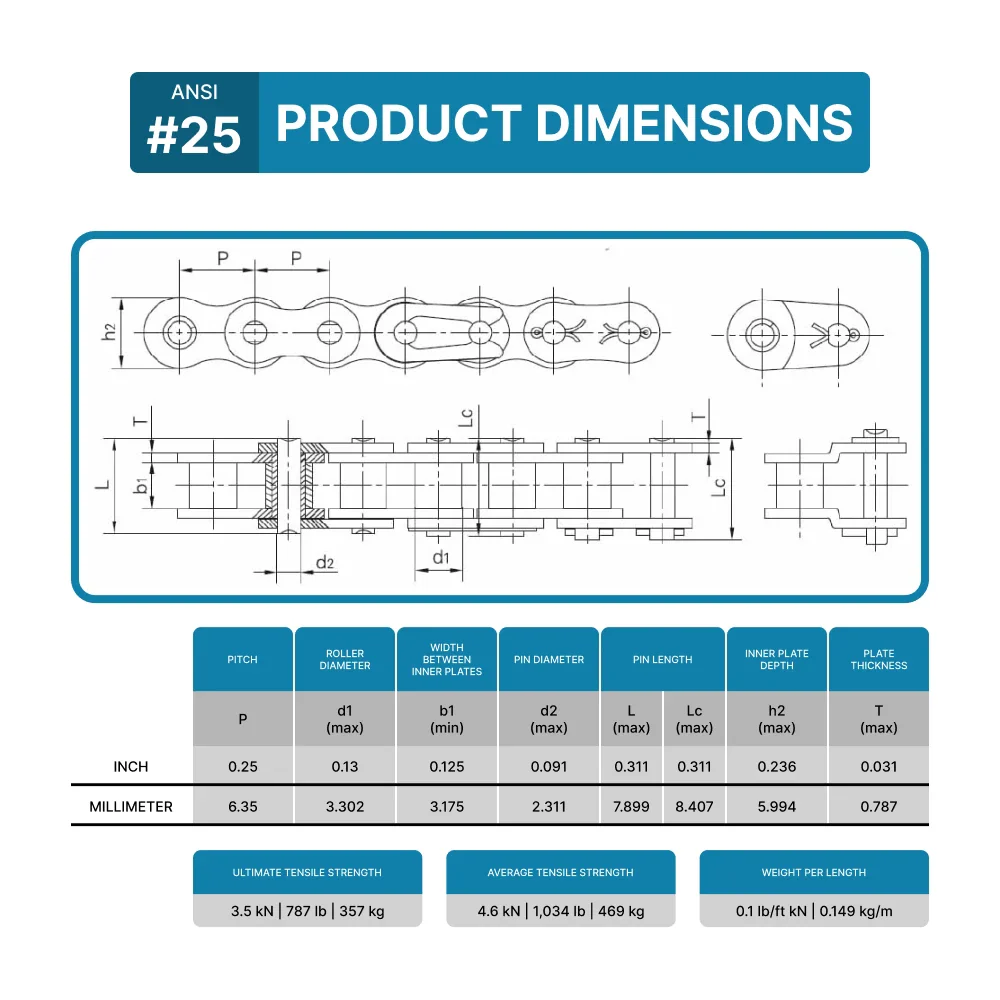

ANSI No |
#25 | LENGTH | 100 ft |
| PITCH | 0.25 inch (6.350 mm) | ROLLER DIAMETER (D1 MAX) |
0.130 inch (3.30 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.125 inch (3.18 mm) | PIN DIAMETER (D2 MAX) |
0.091 inch (2.31 mm) |
| PIN LENGTH (L MAX) |
0.311 inch (7.90 mm) | PIN LENGTH (LC MAX) |
0.331 inch (8.40 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.236 inch (6.0 mm) | PLATE THICKNESS (T MAX) |
0.031 inch (0.80 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
3.50/795 kN/LB | WEIGHT | 0.100 lb/ft (0.15 kg/m) |
Read More
#25 Roller Chain: Compact Solution for Light-Duty Power Transmission
The #25 roller chain is designed for systems that require compact size and efficient motion transfer.
In addition, it is widely used in light-duty applications. As a result, it is ideal for small mechanical systems and precision setups.
Another key advantage is efficiency. The #25 roller chain provides smooth operation with low friction.
This results in improved durability and consistent performance.
What is a #25 Roller Chain?
The #25 roller chain is an ANSI standard chain designed for light-duty power transmission.
It follows industry standards, ensuring compatibility with sprockets and components.
Its compact size makes it suitable for small systems and limited spaces.
Where is it used?
The #25 roller chain is used in:
-
Small mechanical equipment
-
Light automation systems
-
Compact industrial applications
It is commonly used in light-duty applications due to its size and efficiency.
Key Benefits
Compact design
Ideal for space-limited systems.
Smooth operation
Reduces friction.
ANSI compatibility
Works with standard components.
Efficient performance
Designed for light-duty use.
Why choose a small chain like #25?
The #25 roller chain is ideal when space and weight are critical.
It provides reliable performance without oversized components.
How to Choose the Right Chain
Evaluate load requirements.
Check ANSI #25 compatibility.
Consider available space.
These steps ensure proper selection.
Maintenance Tips
Lubricate regularly.
Check alignment.
Inspect frequently.
These practices extend lifespan.
Why Choose PGN Bearings?
ANSI-compliant products.
Reliable quality.
Fast shipping.
Technical support.
