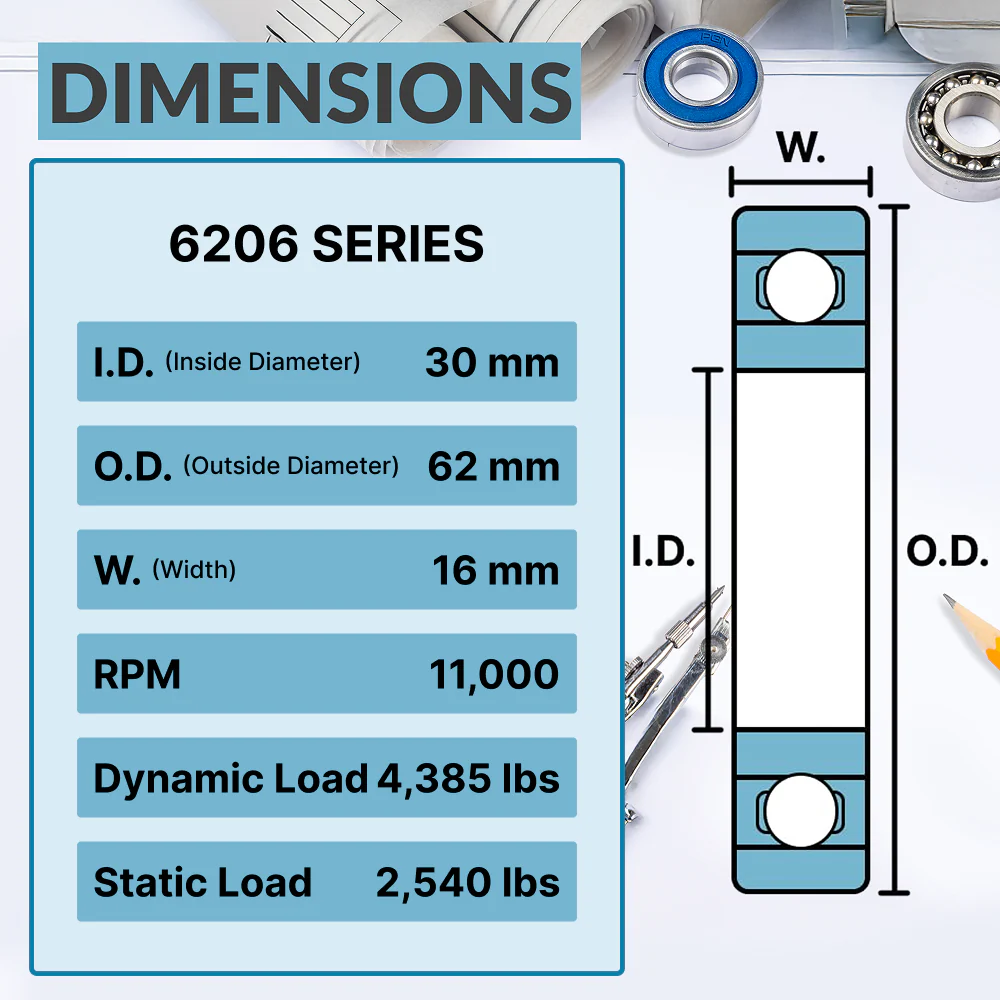

6206-ZZ Ball Bearing - C3 Clearance - 30x62x16
| MODEL | 6206-ZZ | IN DIAMETER (BORE) | 30 mm |
| TYPE | Metal Shield on Both Sides | OUT. DIAMETER | 62 mm |
| MATERIAL | 100% Chrome Steel (AISI 52100) | RPM | 11,000 |
| WIDTH (THICKNESS) | 16 mm | CLEARANCE | C3 (Pre-Lubricated) |
| DYNAMIC LOAD | 4,385 lbs | STATIC LOAD | 2.540 lbs |
Read More
Image for illustration purposes only.

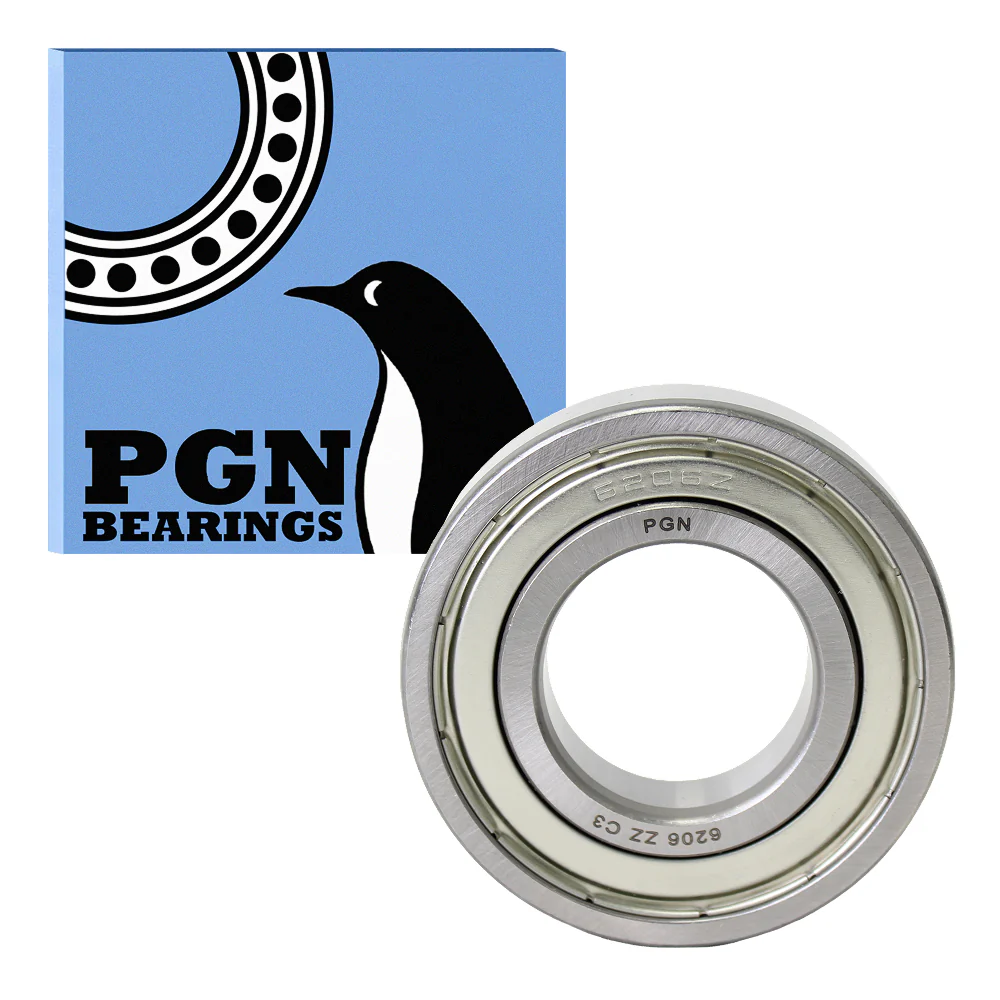

6206-ZZ Ball Bearing C3 Clearance
The 6206-ZZ Ball Bearing C3 Clearance is a deep groove ball bearing designed for applications requiring high rotational speed, thermal stability, and continuous-duty industrial performance.
Measuring 30x62x16mm, this bearing features double metal shields (ZZ) combined with C3 internal clearance, making it ideal for equipment operating at higher RPM and elevated temperatures. Manufactured from chrome steel and supplied factory pre-lubricated, the bearing delivers efficient rotation, lower friction, and dependable durability in industrial systems.
Applications for the 6206-ZZ C3
The 6206-ZZ C3 is commonly used in equipment operating under high speed and continuous thermal expansion conditions, including:
- Industrial electric motors
- Industrial pumps
- Gearboxes
- Conveyor systems
- Industrial fans
- Agricultural machinery
- CNC equipment
- Alternators and generators
C3 clearance bearings are widely selected when a system experiences operational heat and requires increased internal tolerance during thermal expansion.
Features of the 6206-ZZ C3 Ball Bearing
C3 internal clearance
The C3 configuration provides increased internal clearance to support high-speed operation and elevated temperatures.
Double metal shields
Metal shields help reduce entry of light particles while maintaining low rolling resistance.
Excellent high-speed performance
Deep groove geometry combined with C3 clearance supports continuous high-RPM operation with reduced heat generation.
Reduced operational vibration
The bearing supports smooth, quiet, and stable operation in continuous industrial systems.
Chrome steel construction
Chrome steel provides dependable mechanical strength and durability for medium and heavy industrial applications.
When to Use a C3 Bearing
C3 bearings are commonly recommended for:
- Electric motors
- High-RPM equipment
- Systems exposed to thermal expansion
- Continuous-duty industrial machinery
- Applications with elevated operating temperatures
Usage Recommendations
To improve bearing service life:
- Check shaft alignment
- Monitor operating temperature
- Avoid excessive overloading
- Keep the system clean
- Control abnormal vibration
PGN Bearings Product Line
PGN Bearings supplies industrial components for rotating systems and mechanical power transmission applications. The product line includes ball bearings, roller chains, pillow block bearings, steel balls, and additional products developed for dependable high-speed industrial performance.
FAQ
What does ZZ mean on a bearing?
“ZZ” indicates metal shields on both sides of the bearing.
What does C3 clearance mean?
C3 indicates increased internal clearance typically used in high-speed and elevated-temperature applications.
What size is the 6206-ZZ C3?
This bearing measures 30x62x16mm.
Does the 6206-ZZ C3 come pre-lubricated?
Yes. The bearing comes factory pre-lubricated.
Is this bearing suitable for electric motors?
Yes. 6206-ZZ C3 bearings are widely used in electric motors, pumps, and continuous industrial systems.
Description
| MODEL | 6206-ZZ | IN DIAMETER (BORE) | 30 mm |
| TYPE | Metal Shield on Both Sides | OUT. DIAMETER | 62 mm |
| MATERIAL | 100% Chrome Steel (AISI 52100) | RPM | 11,000 |
| WIDTH (THICKNESS) | 16 mm | CLEARANCE | C3 (Pre-Lubricated) |
| DYNAMIC LOAD | 4,385 lbs | STATIC LOAD | 2.540 lbs |
Read More
Image for illustration purposes only.
6206-ZZ Ball Bearing C3 Clearance
The 6206-ZZ Ball Bearing C3 Clearance is a deep groove ball bearing designed for applications requiring high rotational speed, thermal stability, and continuous-duty industrial performance.
Measuring 30x62x16mm, this bearing features double metal shields (ZZ) combined with C3 internal clearance, making it ideal for equipment operating at higher RPM and elevated temperatures. Manufactured from chrome steel and supplied factory pre-lubricated, the bearing delivers efficient rotation, lower friction, and dependable durability in industrial systems.
Applications for the 6206-ZZ C3
The 6206-ZZ C3 is commonly used in equipment operating under high speed and continuous thermal expansion conditions, including:
- Industrial electric motors
- Industrial pumps
- Gearboxes
- Conveyor systems
- Industrial fans
- Agricultural machinery
- CNC equipment
- Alternators and generators
C3 clearance bearings are widely selected when a system experiences operational heat and requires increased internal tolerance during thermal expansion.
Features of the 6206-ZZ C3 Ball Bearing
C3 internal clearance
The C3 configuration provides increased internal clearance to support high-speed operation and elevated temperatures.
Double metal shields
Metal shields help reduce entry of light particles while maintaining low rolling resistance.
Excellent high-speed performance
Deep groove geometry combined with C3 clearance supports continuous high-RPM operation with reduced heat generation.
Reduced operational vibration
The bearing supports smooth, quiet, and stable operation in continuous industrial systems.
Chrome steel construction
Chrome steel provides dependable mechanical strength and durability for medium and heavy industrial applications.
When to Use a C3 Bearing
C3 bearings are commonly recommended for:
- Electric motors
- High-RPM equipment
- Systems exposed to thermal expansion
- Continuous-duty industrial machinery
- Applications with elevated operating temperatures
Usage Recommendations
To improve bearing service life:
- Check shaft alignment
- Monitor operating temperature
- Avoid excessive overloading
- Keep the system clean
- Control abnormal vibration
PGN Bearings Product Line
PGN Bearings supplies industrial components for rotating systems and mechanical power transmission applications. The product line includes ball bearings, roller chains, pillow block bearings, steel balls, and additional products developed for dependable high-speed industrial performance.
FAQ
What does ZZ mean on a bearing?
“ZZ” indicates metal shields on both sides of the bearing.
What does C3 clearance mean?
C3 indicates increased internal clearance typically used in high-speed and elevated-temperature applications.
What size is the 6206-ZZ C3?
This bearing measures 30x62x16mm.
Does the 6206-ZZ C3 come pre-lubricated?
Yes. The bearing comes factory pre-lubricated.
Is this bearing suitable for electric motors?
Yes. 6206-ZZ C3 bearings are widely used in electric motors, pumps, and continuous industrial systems.
