81XH Heavy Duty Conveyor Chain Lumber Mill x 10 Feet + 2 Connecting Links
|

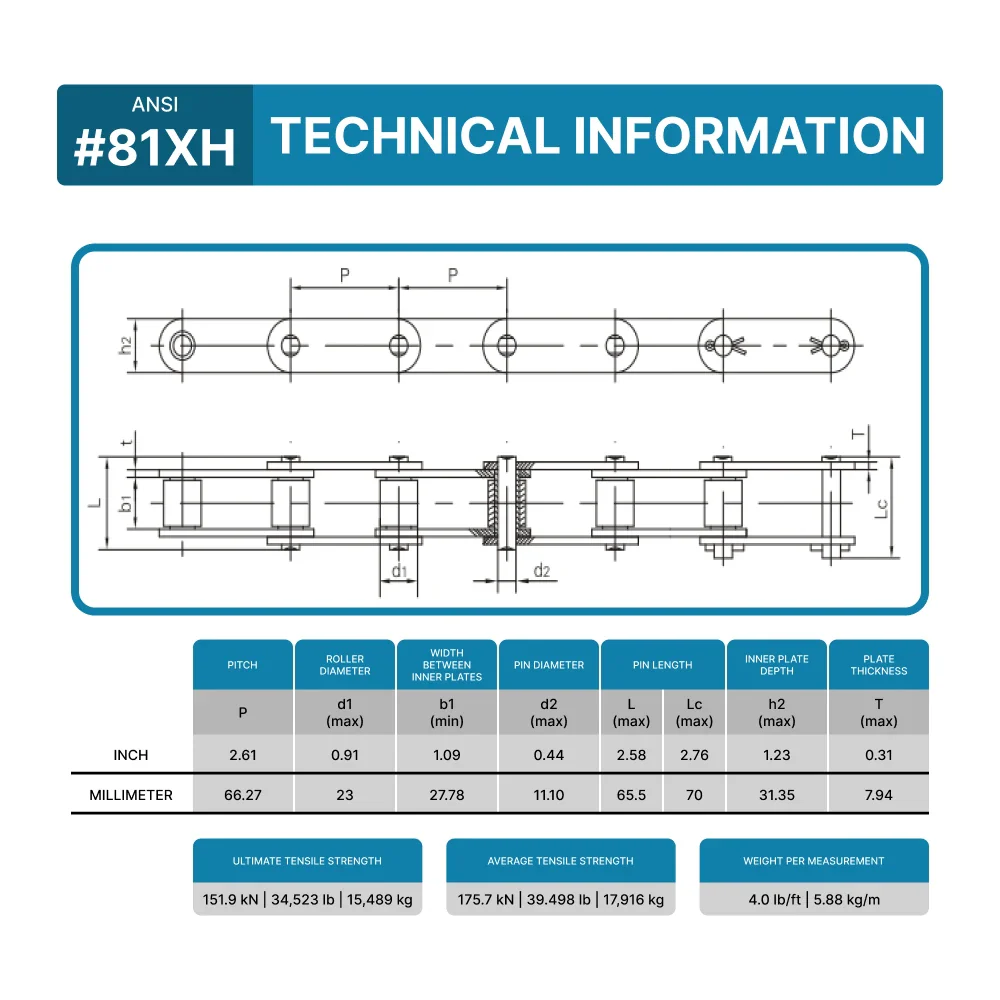

ANSI No |
#81XH | LENGTH | 10 ft |
| PITCH | 2.61 inch (66.27 mm) | ROLLER DIAMETER (D1 MAX) |
0.91 inch (23 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
1.09 inch (27.78 mm) | PIN DIAMETER (D2 MAX) |
0.44 inch (11.10 mm) |
| PIN LENGTH (L MAX) |
2.58 inch (65.5 mm) | PIN LENGTH (LC MAX) |
2.76 inch (70 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.23 inch (31.35 mm) | PLATE THICKNESS (T MAX) |
0.31 inch (7.94 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
151.9/34,523 kN/LB | WEIGHT | 4.0 lb/ft (5.88 kg/m) |
Read More
81XH Pintle Chain: Heavy-Duty Strength for Material Handling
The 81XH pintle chain is designed for heavy-duty industrial applications. It is widely used in material handling systems.
In addition, its reinforced construction allows it to handle high loads and impact. As a result, it performs well in harsh environments.
Another key advantage is durability. The 81XH pintle chain maintains stability under extreme conditions.
This leads to improved productivity and reduced downtime.
What is an 81XH Pintle Chain?
The 81XH pintle chain is an engineering chain used for material transport.
Unlike standard roller chains, it features reinforced sidebars and heavy-duty construction.
It is designed for conveyor systems that handle bulk materials.
Its pins and bushings increase durability and wear resistance.
Where is the 81XH Chain Used?
The 81XH pintle chain is widely used in:
-
Lumber processing
-
Agriculture
-
Mining
-
Heavy conveyor systems
It is built for continuous material transport.
Key Benefits
High mechanical strength
Handles heavy loads and impact.
Durable in harsh environments
Resists wear and fatigue.
Stable operation
Reduces misalignment.
Ideal for conveyors
Designed for material handling systems.
Technical Specifications
-
Pitch: 2.609”
-
Type: Engineering chain
-
Material: Heat-treated steel
-
Length: 10FT
-
Application: Heavy-duty transport
“H” versions include thicker plates for higher strength.
How to Choose the Right Chain
Evaluate load requirements first.
Check conveyor compatibility.
Consider environmental conditions.
These steps ensure proper selection.
Maintenance Tips
Lubricate regularly.
Check alignment.
Inspect frequently.
These practices extend lifespan.
Why Choose PGN Bearings?
High-strength products.
Wide selection.
Fast shipping.
Technical support.
Original: $132.45
-65%$132.45
$46.36
