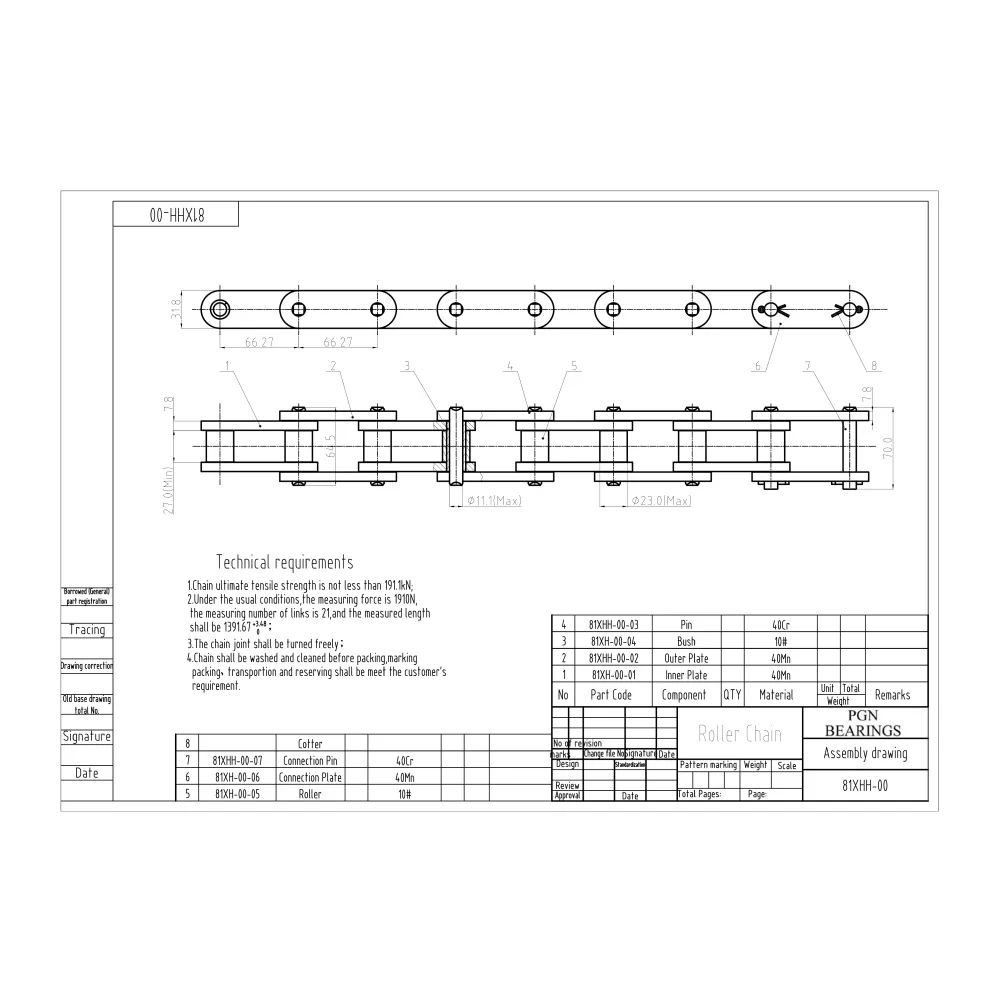

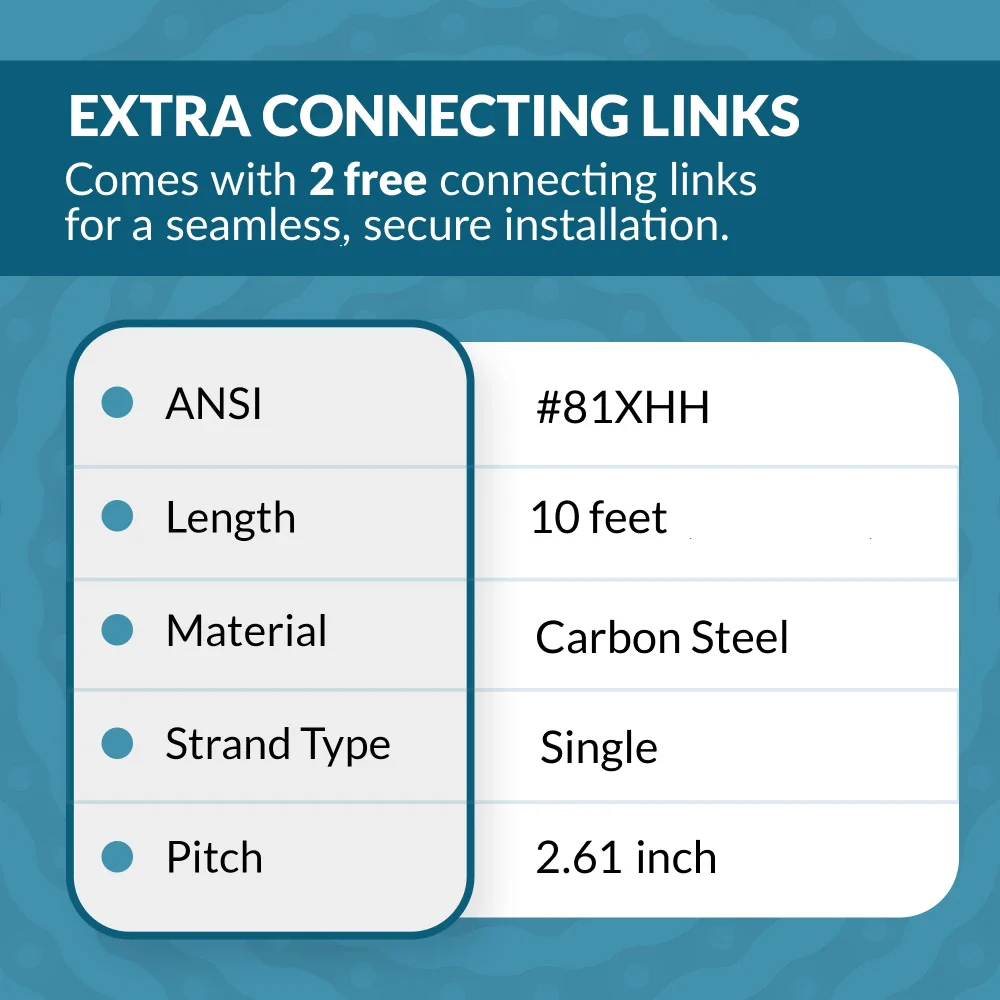

81XHH Lumber Extra Heavy Duty Conveyor Chain x 10 Feet + 2 Connecting Links
|

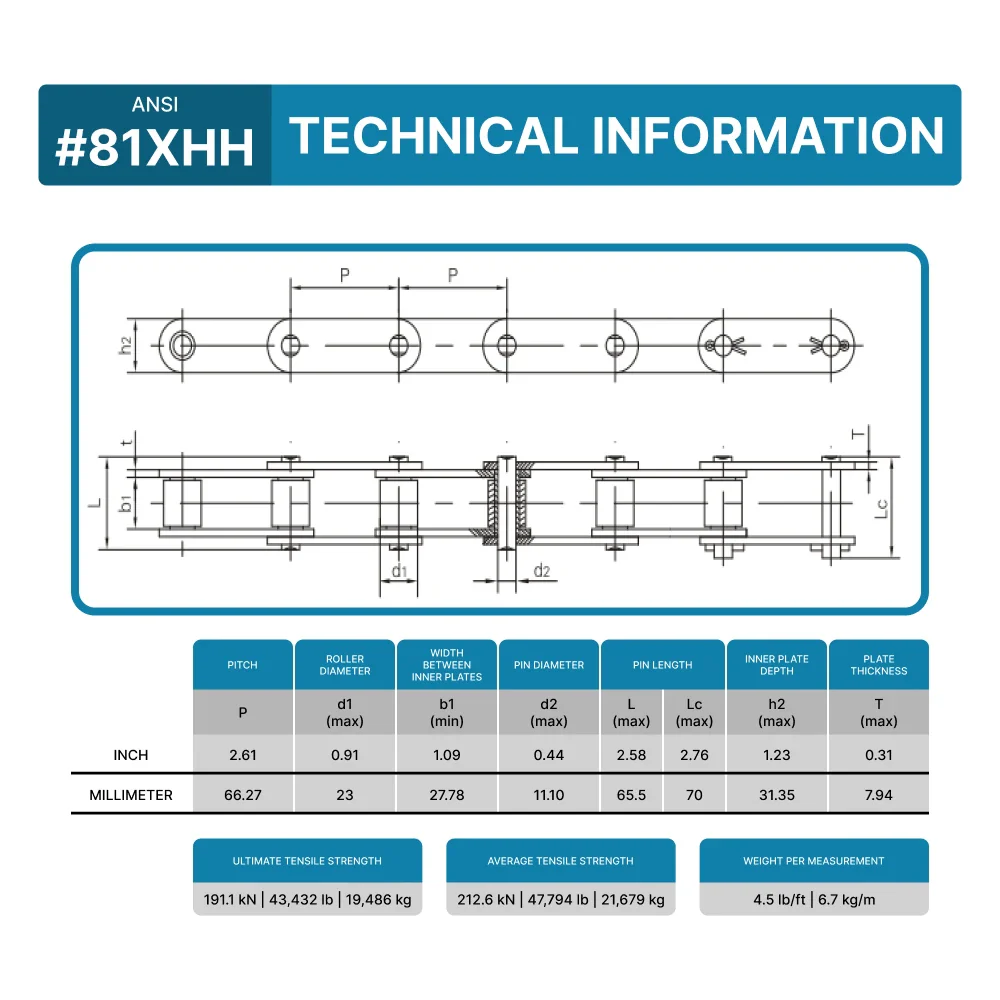

ANSI No |
#81XHH | LENGTH | 10 ft |
| PITCH | 2.61 inch (66.27 mm) | ROLLER DIAMETER (D1 MAX) |
0.91 inch (23 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
1.09 inch (27.78 mm) | PIN DIAMETER (D2 MAX) |
0.44 inch (11.10 mm) |
| PIN LENGTH (L MAX) |
2.58 inch (65.5 mm) | PIN LENGTH (LC MAX) |
2.76 inch (70 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.23 inch (31.35 mm) | PLATE THICKNESS (T MAX) |
0.31 inch (7.94 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
191.1/43,432 kN/LB | WEIGHT | 4.5 lb/ft (6.7 kg/m) |
Read More
81XHH Pintle Chain: Maximum Strength for Extreme Industrial Applications
The 81XHH pintle chain is designed for the most demanding industrial applications. It is the strongest version within the 81X series.
In addition, its reinforced construction allows it to handle extreme loads and impact. As a result, it is widely used in heavy-duty conveyor systems.
Another key advantage is durability. The 81XHH pintle chain performs reliably in abrasive and harsh environments.
This leads to increased productivity and reduced downtime.
What is an 81XHH Pintle Chain?
The 81XHH pintle chain is an engineering chain used for heavy material transport. It belongs to the 81X family, which includes standard, heavy, and extra heavy versions.
The 81XHH version is the strongest option, built for extreme conditions.
It uses reinforced components such as thicker sidebars and hardened pins.
This design increases wear resistance and load capacity.
Where is the 81XHH Chain Used?
The 81XHH pintle chain is used in:
-
Lumber processing
-
Agriculture
-
Mining
-
Heavy conveyor systems
It is designed for continuous heavy material handling.
Key Benefits
Maximum load capacity
Handles extreme loads safely.
High impact resistance
Designed for shock-heavy environments.
Long service life
Reduced wear and extended durability.
Heavy-duty reliability
Built for continuous operation.
Technical Specifications
-
Pitch: 2.609”
-
Type: Engineering chain
-
Material: Heat-treated steel
-
Length: 10FT
-
Application: Heavy-duty conveying
The HH version features thicker plates and higher tensile strength.
How to Choose the Right Chain
Evaluate load requirements first.
Check conveyor compatibility.
Consider operating conditions.
These steps ensure proper selection.
Maintenance Tips
Lubricate regularly.
Check alignment.
Inspect frequently.
These practices extend lifespan.
Why Choose PGN Bearings?
High-strength components.
Wide product range.
Fast shipping.
Technical support.
