#160 Roller Chain x 10 feet + 2 Free Connecting Links

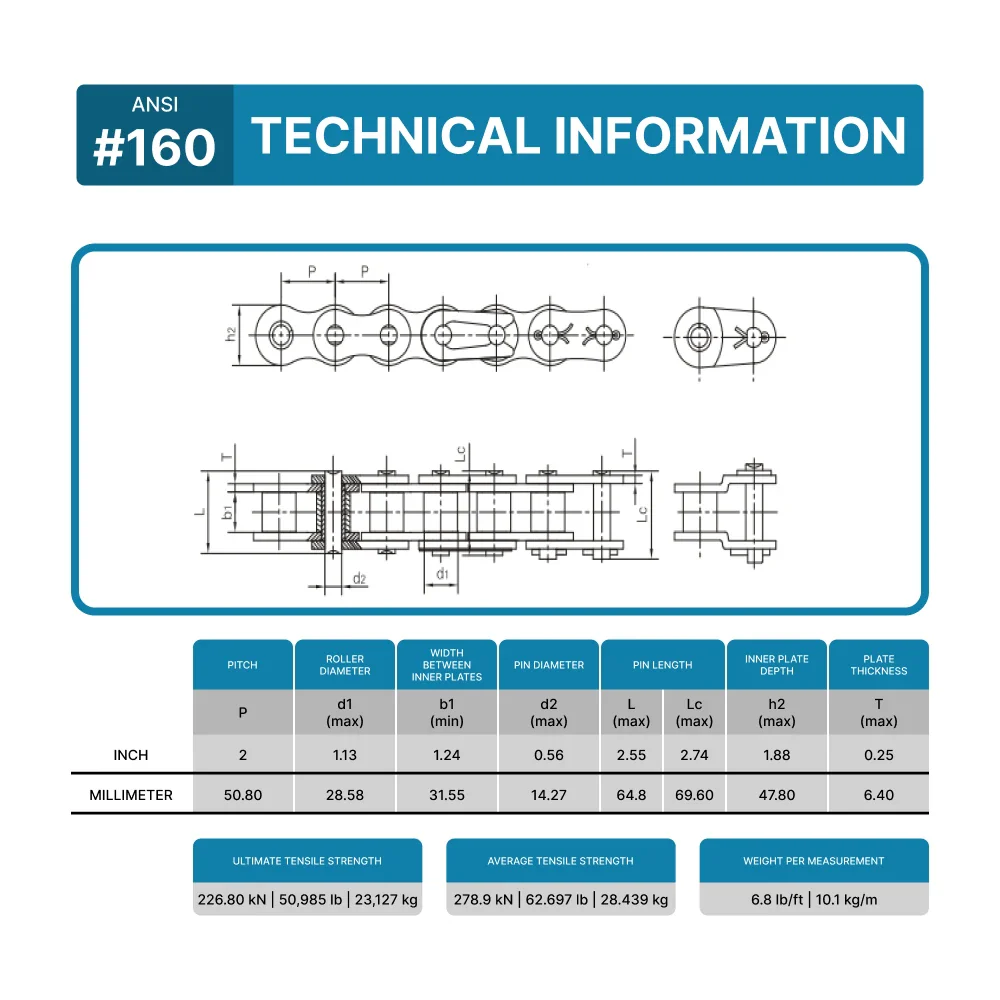

| ANSI No | #160 | LENGTH | 10 ft |
| PITCH | 2 inch (50.80 mm) | ROLLER DIAMETER (D1 MAX) |
1.12 inch (28.58 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
1.24 inch (31.55 mm) | PIN DIAMETER (D2 MAX) |
0.56 inch (14.27 mm) |
| PIN LENGTH (L MAX) |
2.55 inch (64.8 mm) | PIN LENGTH (LC MAX) |
2.74 inch (69.60 mm) |
| INNER PLATE DEPTH (H2 MAX) |
1.88 inch (47.80 mm) | PLATE THICKNESS (T MAX) |
0.25 inch (6.40 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
226.80/51545 kN/LB | WEIGHT | 10.10 lb/ft (4.5 kg/m) |
Read More
#160 Roller Chain 10FT
The #160 Roller Chain 10FT is an industrial chain designed for mechanical transmission applications that require continuous movement, operational stability, and dependable performance in large industrial systems.
With a 10FT length, carbon steel construction, and single strand configuration, this model is commonly used in equipment exposed to heavy loads and continuous operation. In addition, the chain includes 2 connecting links for easier installation and system integration.
Because of this, the #160 Roller Chain is widely used in industrial applications that require reliable power transmission and continuous operation.
What is the #160 Roller Chain 10FT
The #160 Roller Chain 10FT is an industrial roller chain used in mechanical power transmission and continuous movement systems.
This type of chain operates through synchronized interaction between the chain and sprockets, allowing continuous motion transfer in industrial equipment.
Additionally, roller chains are commonly used in industrial applications that require repetitive operation, stable transmission, and integration with different mechanical systems.
As a result, the #160 Roller Chain can support multiple industrial machines and continuous movement systems.
Where the #160 Roller Chain 10FT is Used
The #160 Roller Chain 10FT can be used in different industrial mechanical transmission applications.
Common applications include:
- Conveyor systems
- Industrial equipment
- Mechanical transmission machinery
- Material handling applications
- Equipment exposed to continuous loads
- Industrial movement systems
Additionally, large industrial chains are commonly used in applications that require continuous power transmission and dependable operational stability.
Benefits of the #160 Roller Chain 10FT
Designed for continuous industrial applications
The #160 Roller Chain is commonly used in systems exposed to repetitive operation and constant mechanical movement.
Stable operation
The chain helps maintain synchronized transmission in industrial equipment and large mechanical systems.
Carbon steel construction
The carbon steel construction supports mechanical strength and compatibility with different industrial environments.
Practical 10FT length
The 10FT length provides flexibility for different industrial layouts and mechanical configurations.
Industrial Chains in Heavy Transmission Systems
Heavy industrial transmission systems depend on components capable of maintaining continuous operation during extended working cycles.
Because of this, industrial roller chains are widely used in applications that require efficient power transfer, synchronized movement, and operational stability.
Additionally, single strand chains remain a widely used solution in industrial systems because of their practical integration with multiple mechanical configurations.
The #160 Roller Chain 10FT supports these requirements by providing a solution designed for continuous industrial transmission and heavy mechanical movement applications.
How to Choose the Right Chain
When selecting an industrial roller chain, it is important to evaluate the mechanical system, operating environment, and application requirements.
Additionally, checking sprocket compatibility and equipment configuration helps ensure proper system integration.
Therefore, selecting the correct chain contributes to improved operational stability and equipment performance.
Maintenance Tips
Preventive maintenance helps preserve chain performance over time.
Recommended practices include:
- Periodic alignment checks
- Operational inspections
- Wear monitoring
- Routine system cleaning
- Lubrication according to application requirements
In addition, preventive maintenance helps reduce premature wear and improve operational reliability.
PGN Bearings Product Line
PGN Bearings provides industrial solutions for mechanical transmission and continuous movement systems. The product line includes roller chains, heavy duty chains, duplex chains, conveyor chains, and industrial components.
Additionally, PGN products are developed for industrial applications that require dependable operation and reliable performance.
Why Choose PGN Bearings
PGN Bearings supplies industrial components for multiple industries and mechanical systems.
Key advantages include:
- Complete industrial chain product line
- Solutions for mechanical transmission
- Products for continuous applications
- Components for industrial systems
- Focus on industrial quality
Because of this, companies use PGN products across multiple industrial applications and mechanical transmission systems.
FAQ
What is a #160 roller chain?
It is an industrial chain used in mechanical transmission and continuous movement systems.
Can the #160 Roller Chain 10FT be used in industrial equipment?
Yes. This model is designed for industrial continuous transmission and repetitive operation applications.
Is the chain made from carbon steel?
Yes. This model features carbon steel construction.
Does the chain include connecting links?

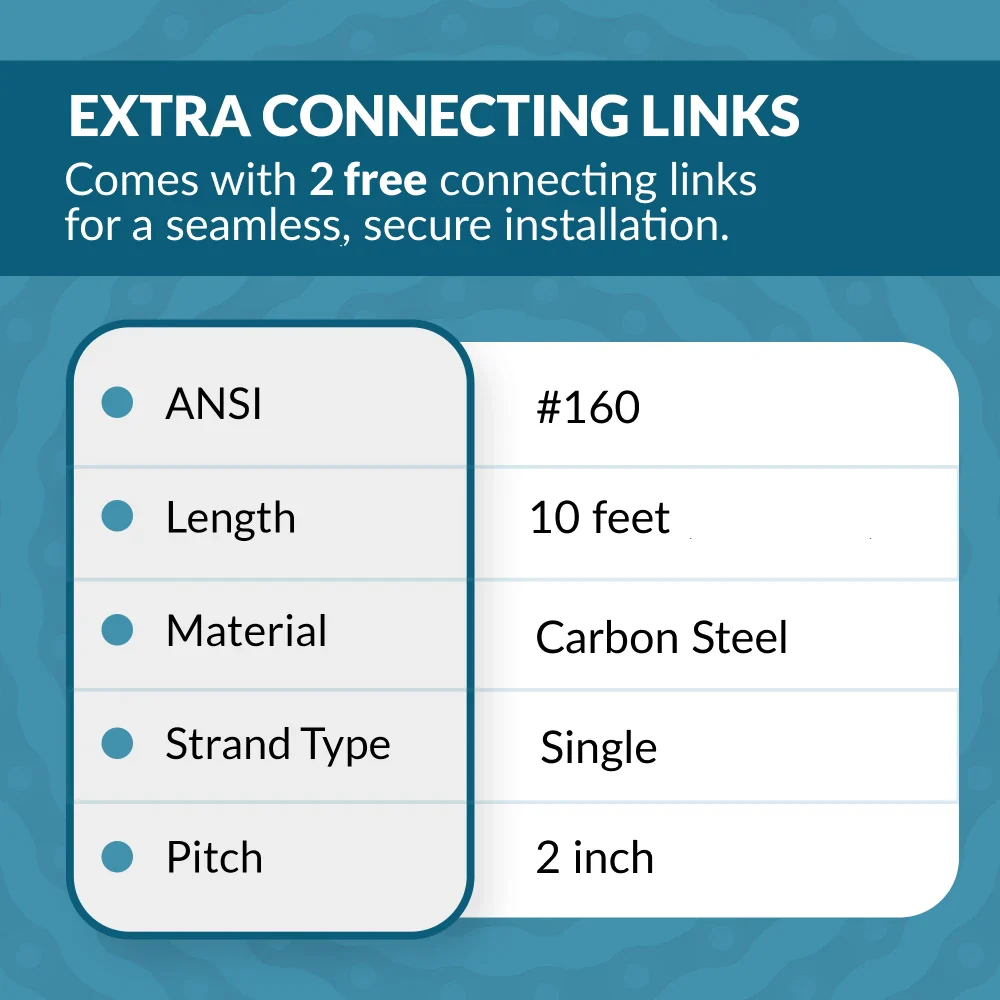

Yes. This model includes 2 connecting links for easier installation and system integration.
How can chain performance be maintained?
Proper lubrication, correct alignment, and periodic inspections help maintain stable and efficient operation.
Original: $219.95
-65%$219.95
$76.98
